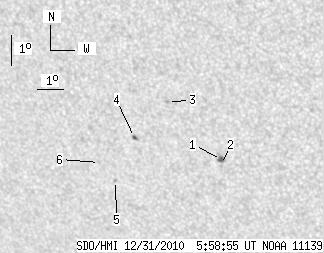

SDO HMI 2010-12-31 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.50 | 11.20 | 2.83 | 7.05 | -27.27 | 234.85 | -30.39 | 133.01 | 0.6169 | 276.2 | 254.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-12-31 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.89 | 4.25 | 1.80 | 2.64 | -27.60 | 236.21 | -29.04 | 134.55 | 0.6059 | 858.9 | 502.9 | |
| 0.00 | 1.95 | 0.00 | 1.22 | -27.76 | 236.16 | -29.08 | 134.73 | 0.6077 | 382.0 | 377.0 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -25.72 | 234.69 | -30.55 | 130.72 | 0.6065 | 847.0 | 650.1 | |
| 1.61 | 2.04 | 1.03 | 1.30 | -26.81 | 233.09 | -32.15 | 130.95 | 0.6312 | 452.9 | 393.8 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -28.18 | 231.88 | -33.36 | 131.86 | 0.6532 | -748.0 | -640.5 | |
| 0.00 | 0.25 | 0.00 | 0.17 | -27.58 | 231.45 | -33.79 | 130.77 | 0.6533 | -607.0 | -631.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
