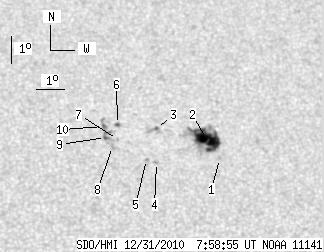

SDO HMI 2010-12-31 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.52 | 85.57 | 25.27 | 53.31 | 34.23 | 268.24 | 4.09 | 354.43 | 0.6092 | -490.9 | 141.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-12-31 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.68 | 33.48 | 269.54 | 5.39 | 352.48 | 0.6005 | -733.0 | -593.5 | |
| 35.35 | 58.72 | 22.04 | 36.61 | 34.21 | 269.12 | 4.97 | 353.23 | 0.6099 | -844.9 | -117.7 | |
| 1.10 | 5.61 | 0.69 | 3.50 | 34.58 | 267.35 | 3.20 | 355.69 | 0.6126 | -436.8 | -244.9 | |
| 0.00 | 1.78 | 0.00 | 1.10 | 33.32 | 267.30 | 3.15 | 355.56 | 0.5950 | 574.0 | 421.6 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 33.43 | 266.95 | 2.80 | 356.07 | 0.5962 | 776.0 | 649.3 | |
| 1.44 | 2.04 | 0.90 | 1.28 | 34.72 | 265.95 | 1.80 | 357.58 | 0.6134 | 553.6 | 565.9 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 34.17 | 265.94 | 1.79 | 357.55 | 0.6057 | 833.0 | 702.0 | |
| 0.00 | 2.38 | 0.00 | 1.47 | 33.91 | 265.76 | 1.61 | 357.78 | 0.6020 | 890.0 | 721.7 | |
| 1.44 | 11.73 | 0.90 | 7.31 | 34.24 | 265.51 | 1.36 | 358.14 | 0.6065 | 776.4 | 726.5 | |
| 1.19 | -9.00 | 0.74 | -9.00 | 34.65 | 265.45 | 1.30 | 358.25 | 0.6121 | 709.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
