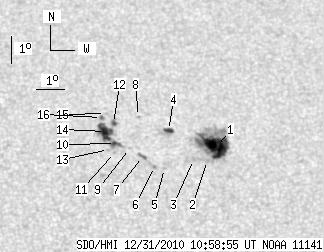

SDO HMI 2010-12-31 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.58 | 125.56 | 35.31 | 78.35 | 34.11 | 267.96 | 5.44 | 352.57 | 0.6099 | -164.3 | 43.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-12-31 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.37 | 71.20 | 20.19 | 44.48 | 33.95 | 269.33 | 6.82 | 350.68 | 0.6101 | -1019.4 | -175.1 | |
| 0.00 | 1.61 | 0.00 | 1.00 | 33.44 | 268.97 | 6.45 | 351.00 | 0.6022 | -340.0 | -334.4 | |
| 0.00 | 1.70 | 0.00 | 1.05 | 33.47 | 268.47 | 5.96 | 351.69 | 0.6016 | -473.0 | -318.6 | |
| 3.74 | 7.48 | 2.34 | 4.68 | 34.54 | 267.65 | 5.14 | 353.09 | 0.6147 | -547.0 | -161.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 33.14 | 267.43 | 4.91 | 353.06 | 0.5950 | 226.0 | 238.3 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 33.21 | 267.08 | 4.56 | 353.56 | 0.5954 | 810.0 | 606.6 | |
| 0.00 | 3.23 | 0.00 | 1.99 | 33.57 | 266.67 | 4.15 | 354.20 | 0.5999 | 541.0 | 505.7 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 35.06 | 266.60 | 4.08 | 354.59 | 0.6203 | 518.0 | 307.2 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 33.86 | 266.22 | 3.70 | 354.88 | 0.6034 | 517.0 | 447.2 | |
| 2.80 | 27.70 | 1.74 | 17.26 | 34.05 | 265.73 | 3.21 | 355.58 | 0.6054 | 843.1 | 489.2 | |
| 0.00 | 0.93 | 0.00 | 0.58 | 33.72 | 265.68 | 3.17 | 355.60 | 0.6007 | 746.0 | 599.1 | |
| 1.70 | 3.65 | 1.07 | 2.29 | 34.79 | 265.69 | 3.17 | 355.75 | 0.6156 | 806.5 | 617.1 | |
| 0.00 | 1.10 | 0.00 | 0.68 | 33.83 | 265.47 | 2.96 | 355.90 | 0.6020 | 729.0 | 638.5 | |
| 14.87 | -10.00 | 9.28 | -10.00 | 34.49 | 265.39 | 2.87 | 356.11 | 0.6112 | 852.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.59 | 35.16 | 265.41 | 2.90 | 356.17 | 0.6204 | 436.0 | 356.3 | |
| 1.10 | 1.44 | 0.69 | 0.91 | 35.01 | 265.26 | 2.75 | 356.35 | 0.6182 | 675.5 | 648.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
