SDO HMI 2010-12-31 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.59 | 140.67 | 32.83 | 87.78 | 34.01 | 268.04 | 6.08 | 351.69 | 0.6098 | -120.6 | -48.3 | |
|
previous
or next observation for the same group /

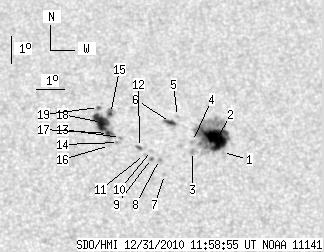

back to the solar disc SDO HMI 2010-12-31 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.74 | 33.40 | 269.56 | 7.59 | 349.45 | 0.6044 | -807.0 | -715.2 | |
| 26.68 | 81.30 | 16.65 | 50.82 | 33.88 | 269.38 | 7.42 | 349.85 | 0.6104 | -1085.8 | -299.2 | |
| 0.00 | 2.38 | 0.00 | 1.47 | 33.43 | 268.49 | 6.52 | 350.91 | 0.6023 | -396.0 | -358.4 | |
| 0.00 | 2.12 | 0.00 | 1.32 | 33.80 | 268.52 | 6.55 | 350.99 | 0.6074 | -238.0 | -159.6 | |
| 0.00 | 0.93 | 0.00 | 0.59 | 34.72 | 268.05 | 6.08 | 351.88 | 0.6190 | -380.0 | -261.5 | |
| 3.91 | 5.27 | 2.45 | 3.30 | 34.50 | 267.78 | 5.81 | 352.17 | 0.6154 | -594.3 | -366.6 | |
| 0.00 | 0.59 | 0.00 | 0.36 | 32.58 | 267.44 | 5.47 | 352.12 | 0.5884 | 526.0 | 457.7 | |
| 0.00 | 1.61 | 0.00 | 0.99 | 33.13 | 267.30 | 5.33 | 352.47 | 0.5957 | 778.0 | 522.6 | |
| 1.19 | 1.53 | 0.73 | 0.94 | 33.17 | 267.02 | 5.05 | 352.87 | 0.5957 | 694.5 | 559.8 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 33.46 | 267.04 | 5.07 | 352.92 | 0.5998 | 539.0 | 467.2 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 33.31 | 266.78 | 4.81 | 353.24 | 0.5973 | 708.0 | 535.0 | |
| 1.53 | 2.46 | 0.95 | 1.52 | 33.57 | 266.62 | 4.65 | 353.52 | 0.6006 | 465.2 | 412.0 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 33.93 | 265.96 | 3.99 | 354.50 | 0.6047 | 688.0 | 630.2 | |
| 0.00 | 1.70 | 0.00 | 1.05 | 33.75 | 265.88 | 3.91 | 354.57 | 0.6020 | 846.0 | 752.7 | |
| 1.70 | 32.96 | 1.07 | 20.58 | 34.82 | 265.64 | 3.67 | 355.09 | 0.6166 | 872.0 | 609.4 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 33.64 | 265.56 | 3.59 | 355.00 | 0.6001 | 705.0 | 503.1 | |
| 1.61 | -15.00 | 1.00 | -15.00 | 34.08 | 265.54 | 3.57 | 355.10 | 0.6062 | 915.5 | 999999 | |
| 14.70 | -15.00 | 9.18 | -15.00 | 34.49 | 265.30 | 3.34 | 355.48 | 0.6116 | 868.5 | 999999 | |
| 1.27 | 1.53 | 0.80 | 0.96 | 35.05 | 265.22 | 3.25 | 355.68 | 0.6192 | 633.7 | 592.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
