SDO HMI 2010-12-31 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.29 | 32.94 | 9.37 | 27.91 | -13.55 | 207.15 | -53.73 | 104.64 | 0.8120 | 162.8 | -123.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2010-12-31 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

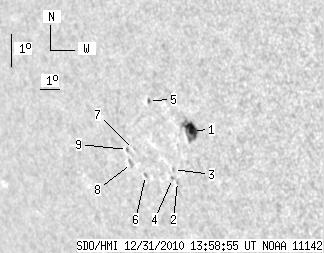

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.02 | 20.64 | 8.27 | 17.09 | -13.27 | 208.13 | -52.74 | 104.42 | 0.8021 | 674.8 | 149.4 | |
| 0.00 | 1.44 | 0.00 | 1.23 | -14.76 | 206.86 | -54.01 | 106.08 | 0.8165 | -522.0 | -437.9 | |
| 0.00 | 1.19 | 0.00 | 1.02 | -14.40 | 206.79 | -54.09 | 105.62 | 0.8168 | -360.0 | -344.0 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -14.66 | 206.64 | -54.23 | 105.92 | 0.8185 | -581.0 | -445.0 | |
| 1.27 | 1.78 | 1.10 | 1.54 | -12.29 | 206.18 | -54.69 | 102.98 | 0.8205 | 388.1 | 377.2 | |
| 0.00 | 1.53 | 0.00 | 1.35 | -14.52 | 205.25 | -55.62 | 105.56 | 0.8315 | -393.0 | -322.2 | |
| 0.00 | 0.42 | 0.00 | 0.38 | -13.72 | 204.90 | -55.98 | 104.56 | 0.8340 | -549.0 | -519.4 | |
| 0.00 | 3.14 | 0.00 | 2.83 | -14.13 | 204.63 | -56.24 | 105.02 | 0.8369 | -549.0 | -456.0 | |
| 0.00 | 1.53 | 0.00 | 1.38 | -13.70 | 204.57 | -56.30 | 104.50 | 0.8370 | -388.0 | -344.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
