SDO HMI 2011-01-01 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.46 | 63.01 | 17.65 | 45.94 | -13.67 | 207.24 | -46.47 | 105.93 | 0.7345 | 77.2 | -36.9 | |
|
previous
or next observation for the same group /

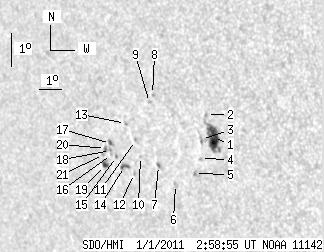

back to the solar disc SDO HMI 2011-01-01 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.99 | 28.38 | 11.95 | 19.97 | -13.49 | 209.17 | -44.54 | 106.08 | 0.7122 | 776.7 | 449.4 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -12.79 | 209.03 | -44.68 | 105.08 | 0.7125 | 287.0 | 366.3 | |
| 0.00 | 2.55 | 0.00 | 1.81 | -13.53 | 208.64 | -45.07 | 106.02 | 0.7185 | 396.0 | 305.3 | |
| 0.00 | 0.93 | 0.00 | 0.67 | -14.09 | 208.46 | -45.25 | 106.76 | 0.7217 | 432.0 | 371.5 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -14.53 | 208.08 | -45.63 | 107.28 | 0.7270 | 516.0 | 434.9 | |
| 0.00 | 2.46 | 0.00 | 1.80 | -14.83 | 207.16 | -46.55 | 107.47 | 0.7380 | -271.0 | -259.9 | |
| 0.42 | 1.78 | 0.31 | 1.32 | -14.24 | 206.57 | -47.14 | 106.55 | 0.7436 | -667.4 | -549.1 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -12.11 | 206.84 | -46.87 | 103.74 | 0.7370 | 586.0 | 473.2 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -12.34 | 206.65 | -47.06 | 104.02 | 0.7395 | 449.0 | 234.9 | |
| 0.00 | 0.42 | 0.00 | 0.32 | -13.94 | 205.84 | -47.87 | 106.00 | 0.7512 | -576.0 | -456.6 | |
| 0.00 | 1.61 | 0.00 | 1.21 | -13.45 | 205.74 | -47.97 | 105.34 | 0.7514 | -705.0 | -556.7 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -14.43 | 205.42 | -48.29 | 106.58 | 0.7566 | -250.0 | -291.4 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -12.93 | 205.42 | -48.29 | 104.60 | 0.7542 | -620.0 | -538.0 | |
| 3.06 | 3.74 | 2.32 | 2.84 | -14.21 | 205.02 | -48.68 | 106.21 | 0.7606 | -635.9 | -616.1 | |
| 0.00 | 1.53 | 0.00 | 1.17 | -13.89 | 204.74 | -48.96 | 105.75 | 0.7631 | -646.0 | -629.4 | |
| 0.00 | 0.59 | 0.00 | 0.46 | -13.83 | 204.53 | -49.18 | 105.62 | 0.7653 | -691.0 | -604.4 | |
| 1.44 | 2.72 | 1.10 | 2.08 | -13.50 | 204.58 | -49.13 | 105.20 | 0.7643 | -605.3 | -578.3 | |
| 0.00 | 1.19 | 0.00 | 0.91 | -13.70 | 204.52 | -49.19 | 105.46 | 0.7653 | -746.0 | -597.4 | |
| 2.55 | 4.33 | 1.97 | 3.35 | -14.14 | 204.16 | -49.55 | 105.97 | 0.7699 | -424.8 | -474.3 | |
| 0.00 | 2.12 | 0.00 | 1.63 | -13.64 | 204.30 | -49.40 | 105.33 | 0.7675 | -589.0 | -498.9 | |
| 0.00 | 1.53 | 0.00 | 1.18 | -13.81 | 204.16 | -49.55 | 105.54 | 0.7693 | -327.0 | -260.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
