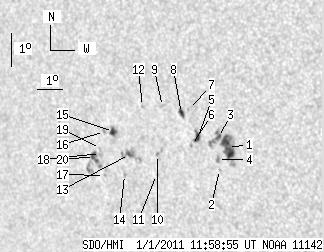

SDO HMI 2011-01-01 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.81 | 92.07 | 22.49 | 61.73 | -13.48 | 207.31 | -41.49 | 106.80 | 0.6748 | 56.8 | -58.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-01 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.61 | 34.40 | 9.45 | 22.27 | -13.58 | 209.71 | -39.09 | 107.60 | 0.6454 | 872.8 | 616.3 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -14.22 | 209.26 | -39.54 | 108.44 | 0.6528 | 475.0 | 413.8 | |
| 1.87 | -1.00 | 1.21 | -1.00 | -13.27 | 209.41 | -39.38 | 107.04 | 0.6483 | 640.9 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.83 | -13.92 | 209.24 | -39.55 | 107.98 | 0.6522 | 702.0 | 515.7 | |
| 3.31 | 5.35 | 2.18 | 3.51 | -13.27 | 208.58 | -40.21 | 106.81 | 0.6588 | 587.3 | 426.1 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -13.47 | 208.30 | -40.49 | 107.03 | 0.6628 | 397.0 | 413.1 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -12.39 | 208.40 | -40.40 | 105.44 | 0.6591 | -289.0 | -279.9 | |
| 3.06 | 4.08 | 2.02 | 2.69 | -12.50 | 208.10 | -40.70 | 105.53 | 0.6631 | 500.9 | 435.3 | |
| 0.00 | 1.10 | 0.00 | 0.74 | -12.27 | 207.38 | -41.42 | 105.01 | 0.6717 | -192.0 | -140.8 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -13.69 | 206.88 | -41.92 | 106.97 | 0.6810 | -681.0 | -551.3 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -14.29 | 206.71 | -42.09 | 107.78 | 0.6846 | -622.0 | -598.0 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -12.24 | 206.57 | -42.23 | 104.78 | 0.6816 | -399.0 | -393.9 | |
| 2.38 | 11.98 | 1.63 | 8.22 | -13.65 | 205.73 | -43.06 | 106.62 | 0.6948 | -814.8 | -621.6 | |
| 0.00 | 1.53 | 0.00 | 1.06 | -14.24 | 205.39 | -43.41 | 107.37 | 0.7003 | -633.0 | -488.2 | |
| 3.40 | 4.50 | 2.35 | 3.11 | -12.94 | 205.22 | -43.57 | 105.49 | 0.6995 | -840.4 | -781.3 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -12.93 | 204.85 | -43.95 | 105.39 | 0.7040 | -630.0 | -582.5 | |
| 0.00 | 0.93 | 0.00 | 0.66 | -14.24 | 204.54 | -44.26 | 107.16 | 0.7103 | -620.0 | -558.2 | |
| 0.00 | 2.89 | 0.00 | 2.02 | -13.58 | 204.53 | -44.27 | 106.23 | 0.7090 | -684.0 | -561.9 | |
| 0.00 | 0.93 | 0.00 | 0.65 | -13.43 | 204.57 | -44.23 | 106.03 | 0.7083 | -657.0 | -551.5 | |
| 5.18 | 14.19 | 3.65 | 10.00 | -13.66 | 204.26 | -44.54 | 106.28 | 0.7125 | -592.6 | -434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
