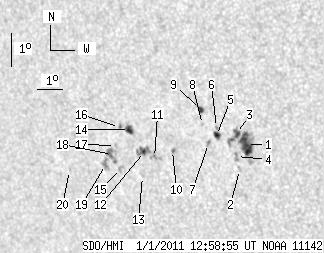

SDO HMI 2011-01-01 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.73 | 97.75 | 19.46 | 64.95 | -13.55 | 207.34 | -40.91 | 107.07 | 0.6677 | 145.2 | -75.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-01 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.00 | 36.61 | 8.34 | 23.50 | -13.59 | 209.78 | -38.47 | 107.82 | 0.6375 | 926.3 | 593.9 | |
| 0.00 | 1.78 | 0.00 | 1.15 | -14.33 | 209.36 | -38.89 | 108.81 | 0.6450 | 547.0 | 472.8 | |
| 3.48 | -1.00 | 2.24 | -1.00 | -13.25 | 209.46 | -38.79 | 107.19 | 0.6407 | 635.5 | 999999 | |
| 0.00 | 3.74 | 0.00 | 2.41 | -13.94 | 209.32 | -38.93 | 108.20 | 0.6443 | 691.0 | 478.8 | |
| 3.31 | 4.33 | 2.15 | 2.82 | -13.29 | 208.67 | -39.58 | 107.01 | 0.6509 | 636.3 | 503.8 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -13.05 | 208.71 | -39.54 | 106.66 | 0.6497 | 343.0 | 290.8 | |
| 0.00 | 2.12 | 0.00 | 1.39 | -13.52 | 208.31 | -39.94 | 107.25 | 0.6560 | 586.0 | 461.9 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -12.94 | 208.18 | -40.07 | 106.35 | 0.6562 | 334.0 | 231.5 | |
| 2.72 | 3.99 | 1.78 | 2.61 | -12.49 | 208.19 | -40.06 | 105.68 | 0.6550 | 517.7 | 367.5 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -13.68 | 206.83 | -41.42 | 107.08 | 0.6749 | -744.0 | -679.0 | |
| 0.00 | 2.72 | 0.00 | 1.84 | -13.86 | 206.05 | -42.20 | 107.14 | 0.6848 | -774.0 | -636.5 | |
| 1.70 | 9.60 | 1.16 | 6.54 | -13.67 | 205.68 | -42.57 | 106.76 | 0.6888 | -877.7 | -681.9 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -14.41 | 205.43 | -42.82 | 107.76 | 0.6937 | -583.0 | -371.2 | |
| 4.67 | 6.20 | 3.20 | 4.25 | -12.99 | 205.21 | -43.04 | 105.68 | 0.6931 | -823.3 | -639.9 | |
| 0.00 | 3.06 | 0.00 | 2.12 | -14.14 | 204.57 | -43.68 | 107.16 | 0.7033 | -714.0 | -611.2 | |
| 0.85 | 1.87 | 0.59 | 1.29 | -12.91 | 204.81 | -43.44 | 105.48 | 0.6978 | -597.2 | -515.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -13.45 | 204.52 | -43.73 | 106.17 | 0.7023 | -675.0 | -591.1 | |
| 0.00 | 9.51 | 0.00 | 6.62 | -13.71 | 204.34 | -43.92 | 106.50 | 0.7051 | -646.0 | -623.6 | |
| 0.00 | 5.35 | 0.00 | 3.75 | -14.00 | 203.97 | -44.28 | 106.81 | 0.7101 | -552.0 | -407.4 | |
| 0.00 | 0.76 | 0.00 | 0.55 | -14.12 | 202.38 | -45.87 | 106.62 | 0.7288 | -533.0 | -354.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
