SDO HMI 2011-01-01 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.25 | 0.00 | 5.17 | -27.24 | 233.80 | -13.35 | 153.64 | 0.4624 | 200.2 | 217.2 | |
|
previous
or next observation for the same group /

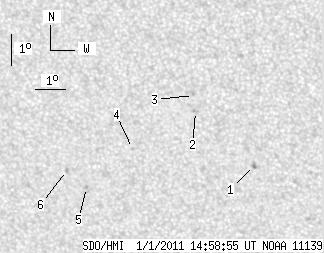

back to the solar disc SDO HMI 2011-01-01 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.51 | -27.74 | 236.71 | -10.44 | 159.03 | 0.4501 | 1014.0 | 850.7 | |
| 0.00 | 1.95 | 0.00 | 1.07 | -25.98 | 234.90 | -12.25 | 153.98 | 0.4367 | 552.0 | 415.4 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -25.46 | 234.89 | -12.26 | 153.38 | 0.4297 | 729.0 | 657.2 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -27.14 | 232.63 | -14.52 | 151.43 | 0.4686 | 535.0 | 374.0 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -28.38 | 230.86 | -16.29 | 150.14 | 0.4977 | -883.0 | -712.7 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -27.82 | 230.25 | -16.90 | 148.60 | 0.4955 | -746.0 | -650.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
