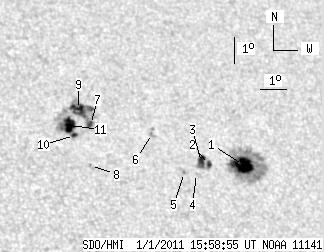

SDO HMI 2011-01-01 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.76 | 182.25 | 35.80 | 121.77 | 33.98 | 267.61 | 21.01 | 333.65 | 0.6725 | -208.9 | -44.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-01 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.23 | 94.69 | 14.29 | 63.82 | 33.41 | 270.00 | 23.40 | 330.69 | 0.6796 | -1044.5 | -262.3 | |
| 2.72 | 14.61 | 1.81 | 9.73 | 33.42 | 268.70 | 22.10 | 332.02 | 0.6716 | -687.9 | -542.9 | |
| 7.13 | -2.00 | 4.75 | -2.00 | 33.48 | 268.41 | 21.81 | 332.37 | 0.6706 | -778.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 33.07 | 268.11 | 21.52 | 332.34 | 0.6644 | -690.0 | -598.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 33.10 | 267.67 | 21.07 | 332.84 | 0.6620 | -682.0 | -551.9 | |
| 0.00 | 4.08 | 0.00 | 2.72 | 34.52 | 266.81 | 20.21 | 334.87 | 0.6728 | -811.0 | -576.9 | |
| 2.55 | 65.56 | 1.68 | 43.33 | 34.81 | 264.53 | 17.93 | 337.54 | 0.6641 | 820.6 | 457.8 | |
| 0.00 | 0.93 | 0.00 | 0.60 | 33.29 | 264.20 | 17.60 | 336.83 | 0.6446 | 776.0 | 628.1 | |
| 7.73 | -7.00 | 5.13 | -7.00 | 35.37 | 264.20 | 17.60 | 338.29 | 0.6690 | 727.5 | 999999 | |
| 2.04 | -7.00 | 1.33 | -7.00 | 34.39 | 263.84 | 17.24 | 338.02 | 0.6557 | 888.7 | 999999 | |
| 10.36 | -7.00 | 6.81 | -7.00 | 34.76 | 263.73 | 17.13 | 338.40 | 0.6596 | 978.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
