SDO HMI 2011-01-01 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.77 | 109.63 | 26.98 | 71.18 | -13.46 | 207.29 | -39.31 | 107.39 | 0.6475 | 85.7 | -64.4 | |
|
previous
or next observation for the same group /

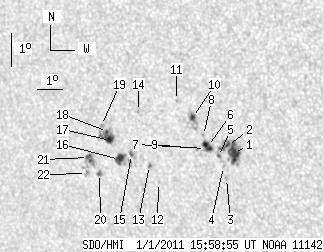

back to the solar disc SDO HMI 2011-01-01 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.82 | 33.03 | 8.04 | 20.72 | -13.69 | 209.88 | -36.72 | 108.54 | 0.6150 | 950.8 | 664.4 | |
| 1.70 | -1.00 | 1.07 | -1.00 | -13.44 | 209.70 | -36.90 | 108.09 | 0.6167 | 819.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -14.43 | 209.47 | -37.12 | 109.57 | 0.6227 | 557.0 | 410.9 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -14.06 | 209.43 | -37.17 | 108.98 | 0.6221 | 572.0 | 447.8 | |
| 1.27 | -1.00 | 0.80 | -1.00 | -13.76 | 209.30 | -37.30 | 108.45 | 0.6229 | 514.5 | 999999 | |
| 6.03 | 7.47 | 3.82 | 4.74 | -13.45 | 208.93 | -37.67 | 107.84 | 0.6266 | 642.7 | 547.5 | |
| 0.51 | -6.00 | 0.32 | -6.00 | -13.50 | 208.85 | -37.75 | 107.90 | 0.6279 | -94.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -13.11 | 208.84 | -37.76 | 107.29 | 0.6269 | 547.0 | 392.9 | |
| 0.00 | 2.38 | 0.00 | 1.52 | -13.49 | 208.46 | -38.14 | 107.76 | 0.6329 | 133.0 | -8.3 | |
| 2.72 | 9.85 | 1.73 | 6.27 | -12.56 | 208.52 | -38.08 | 106.33 | 0.6297 | 765.0 | 476.6 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -12.04 | 207.99 | -38.61 | 105.36 | 0.6352 | 592.0 | 393.4 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -14.46 | 206.82 | -39.78 | 108.71 | 0.6565 | -716.0 | -540.6 | |
| 0.34 | 1.87 | 0.22 | 1.23 | -13.94 | 206.57 | -40.03 | 107.86 | 0.6582 | -873.2 | -668.9 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -12.31 | 206.45 | -40.14 | 105.38 | 0.6556 | 348.0 | 297.2 | |
| 0.93 | 3.57 | 0.62 | 2.36 | -13.59 | 205.92 | -40.67 | 107.14 | 0.6653 | -832.4 | -671.7 | |
| 6.62 | 12.91 | 4.42 | 8.59 | -13.72 | 205.41 | -41.19 | 107.20 | 0.6720 | -860.3 | -612.8 | |
| 3.65 | 15.20 | 2.44 | 10.17 | -13.14 | 205.17 | -41.43 | 106.28 | 0.6736 | -939.2 | -717.7 | |
| 0.76 | -17.00 | 0.51 | -17.00 | -12.87 | 205.11 | -41.49 | 105.87 | 0.6738 | -838.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.97 | -12.68 | 204.90 | -41.70 | 105.54 | 0.6760 | -665.0 | -533.7 | |
| 1.87 | 2.46 | 1.26 | 1.67 | -14.11 | 204.51 | -42.09 | 107.52 | 0.6840 | -719.3 | -689.3 | |
| 2.55 | 9.77 | 1.73 | 6.64 | -13.62 | 204.17 | -42.43 | 106.72 | 0.6870 | -624.1 | -566.8 | |
| 0.00 | 2.21 | 0.00 | 1.51 | -14.09 | 203.98 | -42.62 | 107.35 | 0.6904 | -611.0 | -460.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
