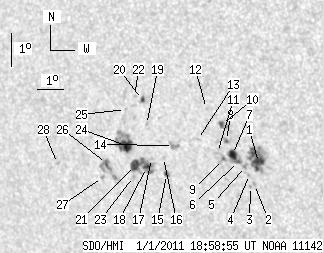

SDO HMI 2011-01-01 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.97 | 144.49 | 30.58 | 92.03 | -13.46 | 206.98 | -37.96 | 107.80 | 0.6302 | -76.1 | -9.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-01 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.24 | 30.48 | 5.05 | 18.69 | -13.78 | 210.01 | -34.93 | 109.36 | 0.5917 | 996.1 | 811.0 | |
| 0.00 | 1.78 | 0.00 | 1.10 | -14.44 | 209.75 | -35.19 | 110.32 | 0.5975 | 756.0 | 623.0 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -14.49 | 209.59 | -35.35 | 110.35 | 0.5998 | 587.0 | 560.1 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -14.13 | 209.62 | -35.32 | 109.77 | 0.5981 | 415.0 | 452.7 | |
| 0.00 | 2.12 | 0.00 | 1.31 | -13.89 | 209.51 | -35.43 | 109.34 | 0.5987 | 754.0 | 634.4 | |
| 2.04 | 10.87 | 1.26 | 6.73 | -13.73 | 209.28 | -35.66 | 108.99 | 0.6012 | 659.0 | 358.1 | |
| 5.52 | -6.00 | 3.42 | -6.00 | -13.51 | 209.09 | -35.85 | 108.57 | 0.6030 | 847.0 | 999999 | |
| 0.93 | 3.65 | 0.58 | 2.26 | -13.09 | 208.94 | -36.00 | 107.82 | 0.6037 | 539.4 | 514.5 | |
| 0.59 | 3.06 | 0.37 | 1.90 | -13.65 | 208.73 | -36.21 | 108.66 | 0.6082 | 303.0 | 96.1 | |
| 2.72 | 5.35 | 1.68 | 3.31 | -12.60 | 208.83 | -36.11 | 107.00 | 0.6037 | 743.2 | 679.8 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -13.44 | 208.54 | -36.40 | 108.24 | 0.6100 | -245.0 | -250.1 | |
| 0.00 | 0.93 | 0.00 | 0.58 | -12.11 | 208.35 | -36.59 | 106.05 | 0.6088 | 509.0 | 359.4 | |
| 0.00 | 0.93 | 0.00 | 0.59 | -13.02 | 207.85 | -37.09 | 107.35 | 0.6178 | -240.0 | -200.8 | |
| 0.00 | 5.18 | 0.00 | 3.30 | -13.17 | 206.91 | -38.03 | 107.29 | 0.6306 | 728.0 | 558.0 | |
| 2.21 | 2.38 | 1.42 | 1.53 | -14.03 | 206.47 | -38.47 | 108.47 | 0.6386 | -808.7 | -724.5 | |
| 0.00 | 1.10 | 0.00 | 0.71 | -13.52 | 206.46 | -38.48 | 107.68 | 0.6374 | -202.0 | -190.3 | |
| 0.00 | 1.10 | 0.00 | 0.71 | -13.53 | 205.99 | -38.95 | 107.56 | 0.6434 | -283.0 | -290.5 | |
| 2.63 | 24.62 | 1.71 | 15.99 | -13.80 | 205.74 | -39.20 | 107.88 | 0.6473 | -1012.2 | -760.4 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -12.51 | 205.98 | -38.96 | 105.99 | 0.6408 | -581.0 | -462.8 | |
| 1.78 | 2.80 | 1.15 | 1.80 | -11.76 | 205.96 | -38.98 | 104.83 | 0.6394 | 614.4 | 514.2 | |
| 7.56 | -18.00 | 4.93 | -18.00 | -13.72 | 205.28 | -39.66 | 107.63 | 0.6529 | -872.0 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -11.67 | 205.66 | -39.28 | 104.60 | 0.6430 | -232.0 | -190.5 | |
| 0.00 | 0.93 | 0.00 | 0.61 | -14.05 | 205.17 | -39.77 | 108.09 | 0.6551 | -667.0 | -529.2 | |
| 11.63 | 25.22 | 7.60 | 16.48 | -13.11 | 205.05 | -39.89 | 106.64 | 0.6543 | -962.7 | -602.0 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -12.04 | 205.25 | -39.69 | 105.07 | 0.6492 | 398.0 | 275.2 | |
| 2.12 | 12.99 | 1.41 | 8.61 | -13.63 | 204.19 | -40.75 | 107.17 | 0.6664 | -770.5 | -579.5 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -14.04 | 203.94 | -41.00 | 107.70 | 0.6705 | -567.0 | -438.1 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -13.56 | 202.20 | -42.74 | 106.55 | 0.6906 | -609.0 | -453.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
