SDO HMI 2011-01-01 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.18 | 0.00 | 5.71 | -28.49 | 232.25 | -12.14 | 157.02 | 0.4712 | -108.6 | -174.3 | |
|
previous
or next observation for the same group /

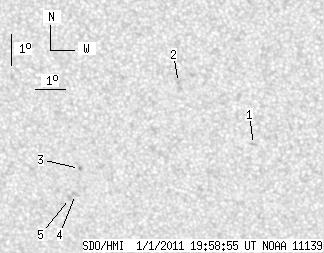

back to the solar disc SDO HMI 2011-01-01 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.21 | 0.00 | 1.21 | -27.71 | 236.78 | -7.60 | 164.33 | 0.4355 | 920.0 | 690.1 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -25.70 | 234.44 | -9.95 | 158.01 | 0.4176 | 834.0 | 601.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -28.44 | 230.80 | -13.59 | 154.32 | 0.4789 | -931.0 | -823.9 | |
| 0.00 | 2.80 | 0.00 | 1.59 | -29.29 | 230.54 | -13.85 | 154.78 | 0.4920 | -708.0 | -526.7 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -29.42 | 230.31 | -14.07 | 154.56 | 0.4951 | -658.0 | -458.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
