SDO HMI 2011-01-01 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.17 | 162.99 | 44.47 | 102.21 | -13.47 | 207.08 | -36.76 | 108.23 | 0.6145 | 19.5 | -110.9 | |
|
previous
or next observation for the same group /

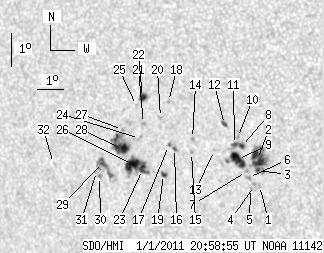

back to the solar disc SDO HMI 2011-01-01 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.88 | -14.48 | 209.96 | -33.87 | 110.96 | 0.5801 | 708.0 | 587.0 | |
| 13.25 | 32.95 | 8.01 | 19.92 | -13.70 | 210.02 | -33.81 | 109.68 | 0.5764 | 987.9 | 770.1 | |
| 1.44 | -2.00 | 0.87 | -2.00 | -14.03 | 209.97 | -33.87 | 110.21 | 0.5783 | 744.7 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.98 | -14.48 | 209.78 | -34.06 | 110.87 | 0.5825 | 807.0 | 646.4 | |
| 0.00 | 0.76 | 0.00 | 0.47 | -14.56 | 209.62 | -34.22 | 110.94 | 0.5850 | 613.0 | 469.6 | |
| 0.00 | 2.21 | 0.00 | 1.34 | -14.23 | 209.60 | -34.23 | 110.38 | 0.5840 | 657.0 | 500.6 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -14.05 | 209.56 | -34.28 | 110.06 | 0.5839 | 727.0 | 592.2 | |
| 1.95 | 24.54 | 1.19 | 14.97 | -13.30 | 209.50 | -34.33 | 108.78 | 0.5820 | 874.3 | 236.5 | |
| 12.40 | -8.00 | 7.56 | -8.00 | -13.68 | 209.29 | -34.54 | 109.34 | 0.5861 | 723.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -13.02 | 209.40 | -34.44 | 108.28 | 0.5825 | 736.0 | 565.7 | |
| 2.55 | -8.00 | 1.55 | -8.00 | -13.23 | 209.25 | -34.58 | 108.57 | 0.5851 | 586.2 | 999999 | |
| 1.53 | 2.72 | 0.93 | 1.66 | -12.62 | 208.98 | -34.85 | 107.45 | 0.5868 | 699.1 | 600.9 | |
| 0.00 | 1.10 | 0.00 | 0.68 | -13.39 | 208.49 | -35.35 | 108.54 | 0.5959 | -582.0 | -372.5 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -13.00 | 207.73 | -36.10 | 107.64 | 0.6048 | -709.0 | -530.0 | |
| 0.00 | 1.10 | 0.00 | 0.69 | -13.42 | 207.62 | -36.21 | 108.27 | 0.6075 | -795.0 | -609.9 | |
| 1.02 | 1.02 | 0.64 | 0.64 | -13.28 | 207.00 | -36.83 | 107.83 | 0.6152 | 607.6 | 0.0 | |
| 1.10 | 1.10 | 0.69 | 0.69 | -13.19 | 206.79 | -37.04 | 107.61 | 0.6177 | 545.3 | 565.0 | |
| 0.00 | 1.10 | 0.00 | 0.69 | -11.87 | 207.01 | -36.82 | 105.58 | 0.6112 | 759.0 | 616.2 | |
| 1.87 | 2.72 | 1.18 | 1.72 | -14.05 | 206.44 | -37.39 | 108.85 | 0.6248 | -792.5 | -687.3 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -12.34 | 206.63 | -37.20 | 106.21 | 0.6174 | 560.0 | 371.5 | |
| 0.00 | 1.95 | 0.00 | 1.24 | -12.50 | 205.96 | -37.88 | 106.26 | 0.6267 | -387.0 | -436.3 | |
| 4.42 | 5.77 | 2.79 | 3.65 | -11.72 | 206.05 | -37.78 | 105.06 | 0.6236 | 703.3 | 425.7 | |
| 3.65 | 28.36 | 2.33 | 18.18 | -13.87 | 205.67 | -38.17 | 108.31 | 0.6343 | -997.2 | -746.3 | |
| 0.00 | 1.61 | 0.00 | 1.03 | -12.94 | 205.73 | -38.11 | 106.88 | 0.6309 | -552.0 | -614.9 | |
| 0.00 | 0.93 | 0.00 | 0.59 | -11.95 | 205.78 | -38.05 | 105.35 | 0.6277 | 260.0 | 185.9 | |
| 11.55 | -23.00 | 7.41 | -23.00 | -13.71 | 205.31 | -38.52 | 107.94 | 0.6384 | -955.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -12.65 | 205.12 | -38.71 | 106.26 | 0.6380 | -812.0 | -706.6 | |
| 11.21 | 25.47 | 7.22 | 16.40 | -13.22 | 204.94 | -38.90 | 107.07 | 0.6418 | -947.3 | -724.1 | |
| 3.23 | 14.01 | 2.10 | 9.13 | -13.61 | 204.15 | -39.68 | 107.44 | 0.6528 | -770.3 | -569.3 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -14.03 | 203.95 | -39.88 | 108.00 | 0.6565 | -539.0 | -426.6 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -13.87 | 203.86 | -39.97 | 107.74 | 0.6572 | -260.0 | -226.9 | |
| 0.00 | 0.76 | 0.00 | 0.51 | -13.57 | 202.20 | -41.64 | 106.84 | 0.6771 | -534.0 | -482.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
