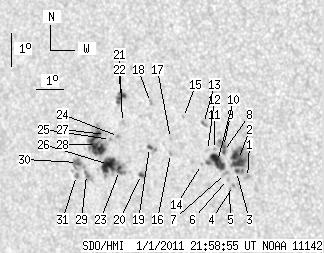

SDO HMI 2011-01-01 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.49 | 181.20 | 52.74 | 112.99 | -13.43 | 206.91 | -36.38 | 108.30 | 0.6093 | -62.1 | -83.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-01 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.27 | -14.25 | 210.37 | -32.92 | 110.99 | 0.5664 | 712.0 | 557.8 | |
| 14.27 | 30.83 | 8.57 | 18.50 | -13.70 | 210.13 | -33.16 | 109.95 | 0.5675 | 1006.7 | 797.5 | |
| 1.61 | -2.00 | 0.97 | -2.00 | -14.06 | 210.00 | -33.29 | 110.50 | 0.5706 | 757.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -14.47 | 209.82 | -33.47 | 111.12 | 0.5746 | 763.0 | 619.6 | |
| 0.00 | 0.76 | 0.00 | 0.46 | -14.56 | 209.66 | -33.63 | 111.19 | 0.5771 | 589.0 | 504.0 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -14.29 | 209.63 | -33.65 | 110.72 | 0.5764 | 615.0 | 522.7 | |
| 0.00 | 2.63 | 0.00 | 1.59 | -14.10 | 209.59 | -33.70 | 110.39 | 0.5763 | 707.0 | 543.1 | |
| 1.44 | 7.73 | 0.87 | 4.66 | -13.44 | 209.62 | -33.66 | 109.29 | 0.5734 | 856.9 | 587.6 | |
| 2.63 | -8.00 | 1.59 | -8.00 | -13.29 | 209.65 | -33.64 | 109.05 | 0.5725 | 860.6 | 999999 | |
| 11.89 | 17.24 | 7.20 | 10.45 | -13.74 | 209.36 | -33.93 | 109.68 | 0.5780 | 764.1 | 129.0 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -13.37 | 209.30 | -33.98 | 109.05 | 0.5774 | 586.0 | 436.8 | |
| 0.00 | 1.61 | 0.00 | 0.98 | -13.40 | 209.04 | -34.24 | 108.98 | 0.5810 | -244.0 | -110.8 | |
| 0.00 | 2.38 | 0.00 | 1.44 | -12.59 | 209.03 | -34.26 | 107.60 | 0.5786 | 879.0 | 713.9 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -13.81 | 208.75 | -34.53 | 109.55 | 0.5863 | 361.0 | 173.0 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -12.39 | 208.32 | -34.96 | 107.01 | 0.5876 | -446.0 | -363.8 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -13.45 | 207.67 | -35.62 | 108.52 | 0.5996 | -583.0 | -505.7 | |
| 0.00 | 0.76 | 0.00 | 0.47 | -13.00 | 207.74 | -35.54 | 107.82 | 0.5972 | -647.0 | -533.1 | |
| 0.00 | 1.78 | 0.00 | 1.10 | -11.90 | 207.17 | -36.11 | 105.83 | 0.6017 | 738.0 | 518.0 | |
| 1.78 | 4.33 | 1.11 | 2.70 | -13.24 | 206.91 | -36.37 | 107.92 | 0.6090 | 641.8 | 658.8 | |
| 1.53 | 2.29 | 0.96 | 1.44 | -14.04 | 206.47 | -36.82 | 109.04 | 0.6173 | -771.2 | -693.8 | |
| 0.00 | 1.87 | 0.00 | 1.17 | -12.47 | 206.02 | -37.26 | 106.39 | 0.6185 | -381.0 | -383.5 | |
| 6.37 | 7.64 | 3.99 | 4.79 | -11.72 | 206.07 | -37.21 | 105.21 | 0.6159 | 743.3 | 522.1 | |
| 2.97 | 28.62 | 1.89 | 18.21 | -13.89 | 205.65 | -37.63 | 108.52 | 0.6274 | -980.6 | -773.6 | |
| 0.00 | 1.44 | 0.00 | 0.91 | -12.88 | 205.80 | -37.48 | 106.97 | 0.6225 | -484.0 | -471.9 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -12.96 | 205.48 | -37.80 | 107.00 | 0.6269 | -934.0 | -802.7 | |
| 13.67 | -23.00 | 8.72 | -23.00 | -13.70 | 205.27 | -38.02 | 108.09 | 0.6318 | -975.4 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.70 | -12.80 | 205.32 | -37.97 | 106.70 | 0.6287 | -800.0 | -617.7 | |
| 20.64 | 35.92 | 13.19 | 22.95 | -13.09 | 204.92 | -38.37 | 107.03 | 0.6346 | -930.2 | -581.0 | |
| 1.10 | 19.28 | 0.71 | 12.47 | -13.97 | 204.36 | -38.93 | 108.21 | 0.6442 | -766.2 | -523.0 | |
| 4.59 | -29.00 | 2.97 | -29.00 | -13.60 | 204.08 | -39.20 | 107.56 | 0.6467 | -666.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.54 | -13.99 | 203.96 | -39.32 | 108.11 | 0.6493 | -587.0 | -454.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
