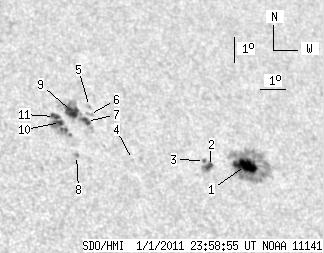

SDO HMI 2011-01-01 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.08 | 162.99 | 30.38 | 112.74 | 34.04 | 267.49 | 25.31 | 329.48 | 0.6998 | -89.1 | -14.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-01 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.92 | 88.59 | 12.55 | 62.18 | 33.41 | 270.06 | 27.88 | 326.49 | 0.7095 | -948.8 | -263.4 | |
| 3.91 | 9.43 | 2.70 | 6.50 | 33.33 | 268.61 | 26.43 | 327.74 | 0.6989 | -731.5 | -669.2 | |
| 0.93 | -2.00 | 0.65 | -2.00 | 33.55 | 268.48 | 26.30 | 328.05 | 0.7002 | -557.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 33.51 | 265.66 | 23.48 | 330.73 | 0.6817 | -681.0 | -571.6 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 35.46 | 264.55 | 22.37 | 333.43 | 0.6955 | 171.0 | 85.9 | |
| 0.00 | 2.46 | 0.00 | 1.68 | 35.16 | 264.47 | 22.29 | 333.28 | 0.6918 | 425.0 | 338.4 | |
| 4.16 | 35.93 | 2.83 | 24.48 | 34.89 | 264.27 | 22.09 | 333.26 | 0.6879 | 688.1 | 321.0 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 33.61 | 263.54 | 21.36 | 332.97 | 0.6699 | 817.0 | 742.8 | |
| 10.70 | -7.00 | 7.29 | -7.00 | 35.25 | 263.79 | 21.61 | 334.02 | 0.6891 | 720.6 | 999999 | |
| 2.55 | 22.93 | 1.72 | 15.44 | 34.83 | 263.25 | 21.07 | 334.24 | 0.6815 | 901.9 | 752.6 | |
| 3.91 | -10.00 | 2.64 | -10.00 | 35.05 | 263.08 | 20.90 | 334.59 | 0.6829 | 643.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
