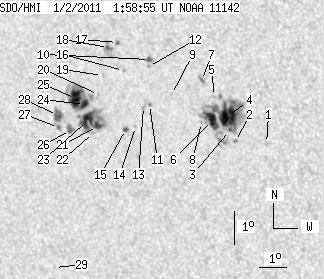

SDO HMI 2011-01-02 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.76 | 242.75 | 56.23 | 146.71 | -13.55 | 207.36 | -33.73 | 109.50 | 0.5743 | -44.5 | -11.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-02 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.69 | -14.64 | 211.42 | -29.66 | 113.35 | 0.5237 | -449.0 | -326.6 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -14.55 | 210.34 | -30.75 | 112.58 | 0.5380 | 954.0 | 758.9 | |
| 1.10 | 106.10 | 0.65 | 62.29 | -14.21 | 210.18 | -30.91 | 111.89 | 0.5388 | 719.5 | 459.8 | |
| 24.80 | -3.00 | 14.54 | -3.00 | -13.79 | 210.17 | -30.91 | 111.13 | 0.5371 | 1090.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -13.18 | 209.80 | -31.29 | 109.85 | 0.5397 | -77.0 | -87.5 | |
| 13.17 | -3.00 | 7.77 | -3.00 | -13.90 | 209.58 | -31.50 | 111.02 | 0.5455 | 709.6 | 999999 | |
| 1.53 | 2.63 | 0.90 | 1.55 | -12.69 | 209.40 | -31.68 | 108.79 | 0.5434 | 680.4 | 560.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -13.95 | 209.22 | -31.86 | 110.93 | 0.5507 | 107.0 | 48.9 | |
| 0.00 | 1.10 | 0.00 | 0.66 | -13.08 | 208.27 | -32.81 | 108.98 | 0.5604 | -744.0 | -525.0 | |
| 1.95 | 2.72 | 1.17 | 1.63 | -12.01 | 207.63 | -33.45 | 106.88 | 0.5656 | 886.9 | 672.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -13.35 | 207.43 | -33.65 | 109.10 | 0.5728 | 702.0 | 583.3 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -12.22 | 207.57 | -33.52 | 107.21 | 0.5672 | 658.0 | 491.1 | |
| 0.00 | 2.04 | 0.00 | 1.23 | -13.41 | 207.21 | -33.88 | 109.10 | 0.5761 | 577.0 | 561.1 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -14.00 | 206.81 | -34.27 | 109.92 | 0.5834 | -653.0 | -528.5 | |
| 2.38 | 2.55 | 1.45 | 1.56 | -14.08 | 206.43 | -34.65 | 109.89 | 0.5888 | -773.9 | -682.5 | |
| 0.00 | 1.10 | 0.00 | 0.67 | -12.31 | 206.64 | -34.44 | 107.03 | 0.5801 | 594.0 | 402.4 | |
| 1.10 | 1.27 | 0.67 | 0.77 | -11.47 | 206.55 | -34.54 | 105.57 | 0.5790 | 726.6 | 781.5 | |
| 1.53 | 10.02 | 0.93 | 6.11 | -11.61 | 206.20 | -34.89 | 105.69 | 0.5842 | 841.4 | 570.3 | |
| 0.00 | 1.10 | 0.00 | 0.68 | -12.44 | 205.85 | -35.23 | 106.96 | 0.5912 | -766.0 | -615.8 | |
| 0.00 | 0.93 | 0.00 | 0.58 | -13.00 | 205.61 | -35.47 | 107.80 | 0.5961 | -729.0 | -636.4 | |
| 3.82 | 38.82 | 2.37 | 24.06 | -13.95 | 205.41 | -35.67 | 109.29 | 0.6019 | -965.8 | -715.3 | |
| 0.00 | 2.63 | 0.00 | 1.63 | -14.13 | 205.23 | -35.86 | 109.50 | 0.6049 | -429.0 | -462.0 | |
| 13.34 | -21.00 | 8.28 | -21.00 | -13.76 | 205.07 | -36.02 | 108.85 | 0.6058 | -967.6 | 999999 | |
| 4.84 | 41.79 | 3.00 | 25.99 | -13.28 | 205.04 | -36.04 | 108.06 | 0.6046 | -1151.4 | -686.0 | |
| 14.36 | -24.00 | 8.94 | -24.00 | -13.09 | 204.74 | -36.35 | 107.65 | 0.6081 | -966.8 | 999999 | |
| 2.72 | 5.61 | 1.71 | 3.52 | -14.04 | 204.38 | -36.71 | 109.04 | 0.6157 | -614.4 | -646.7 | |
| 1.36 | 3.06 | 0.86 | 1.93 | -13.94 | 203.94 | -37.15 | 108.72 | 0.6211 | -477.4 | -336.9 | |
| 4.76 | 10.28 | 2.99 | 6.47 | -13.58 | 203.97 | -37.12 | 108.16 | 0.6196 | -693.6 | -519.9 | |
| 0.00 | 0.59 | 0.00 | 0.39 | -18.15 | 202.84 | -38.24 | 114.71 | 0.6498 | -573.0 | -361.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
