SDO HMI 2011-01-02 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.42 | 273.81 | 49.78 | 162.47 | -13.61 | 207.34 | -32.10 | 110.32 | 0.5524 | -63.3 | 6.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-02 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

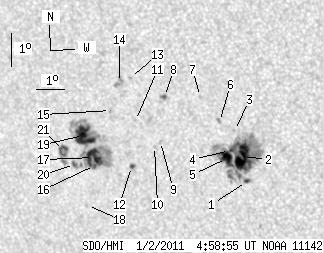

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.87 | 3.65 | 1.08 | 2.11 | -14.67 | 210.37 | -29.08 | 113.73 | 0.5157 | 818.0 | 608.5 | |
| 19.71 | 121.84 | 11.35 | 70.25 | -13.92 | 210.34 | -29.11 | 112.32 | 0.5125 | 1164.3 | 493.9 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -13.13 | 210.16 | -29.28 | 110.75 | 0.5114 | 547.0 | 443.2 | |
| 0.51 | -2.00 | 0.29 | -2.00 | -13.73 | 209.91 | -29.54 | 111.72 | 0.5176 | 433.5 | 999999 | |
| 11.47 | -2.00 | 6.64 | -2.00 | -13.96 | 209.77 | -29.67 | 112.08 | 0.5206 | 792.9 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.23 | -12.85 | 209.68 | -29.77 | 109.97 | 0.5171 | 863.0 | 649.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -12.09 | 209.11 | -30.33 | 108.27 | 0.5221 | -239.0 | -336.9 | |
| 1.44 | 2.80 | 0.85 | 1.65 | -12.05 | 207.85 | -31.60 | 107.65 | 0.5398 | 848.6 | 721.1 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -13.39 | 207.52 | -31.93 | 109.89 | 0.5493 | 861.0 | 647.8 | |
| 0.00 | 1.10 | 0.00 | 0.66 | -13.53 | 207.28 | -32.16 | 110.04 | 0.5531 | 649.0 | 528.4 | |
| 0.00 | 0.59 | 0.00 | 0.35 | -12.74 | 206.72 | -32.73 | 108.39 | 0.5579 | 426.0 | 393.7 | |
| 1.61 | 2.21 | 0.97 | 1.33 | -14.11 | 206.36 | -33.08 | 110.60 | 0.5678 | -756.0 | -755.9 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -11.45 | 206.72 | -32.73 | 106.13 | 0.5538 | 835.0 | 725.9 | |
| 0.00 | 6.29 | 0.00 | 3.75 | -11.59 | 206.30 | -33.14 | 106.22 | 0.5600 | 691.0 | 637.7 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -12.41 | 205.86 | -33.58 | 107.49 | 0.5686 | -637.0 | -539.1 | |
| 0.51 | 109.35 | 0.31 | 66.57 | -14.04 | 205.02 | -34.43 | 109.90 | 0.5856 | -734.3 | -623.2 | |
| 15.80 | -16.00 | 9.63 | -16.00 | -13.80 | 205.02 | -34.42 | 109.50 | 0.5846 | -1066.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.58 | -15.23 | 204.54 | -34.90 | 111.65 | 0.5963 | -353.0 | -351.2 | |
| 21.75 | -16.00 | 13.27 | -16.00 | -13.13 | 204.76 | -34.68 | 108.28 | 0.5859 | -989.5 | 999999 | |
| 1.95 | 5.44 | 1.20 | 3.34 | -13.99 | 204.29 | -35.16 | 109.51 | 0.5951 | -596.8 | -578.8 | |
| 6.80 | 11.81 | 4.19 | 7.29 | -13.56 | 203.95 | -35.50 | 108.68 | 0.5981 | -569.2 | -459.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
