SDO HMI 2011-01-02 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.38 | 0.00 | 4.06 | -28.04 | 231.79 | -6.57 | 166.68 | 0.4353 | -403.0 | -381.4 | |
|
previous
or next observation for the same group /

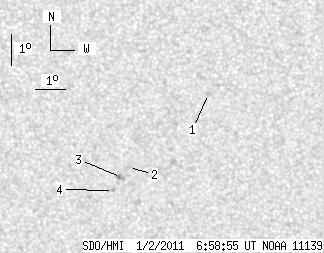

back to the solar disc SDO HMI 2011-01-02 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.21 | 0.00 | 1.19 | -26.10 | 233.96 | -4.39 | 170.00 | 0.3980 | 688.0 | 535.3 | |
| 0.00 | 0.76 | 0.00 | 0.42 | -28.48 | 231.17 | -7.19 | 165.60 | 0.4442 | -792.0 | -693.3 | |
| 0.00 | 3.31 | 0.00 | 1.84 | -28.81 | 230.91 | -7.45 | 165.32 | 0.4501 | -812.0 | -821.0 | |
| 0.00 | 1.10 | 0.00 | 0.61 | -29.23 | 230.61 | -7.75 | 165.03 | 0.4576 | -696.0 | -631.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
