SDO HMI 2011-01-02 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.00 | 100.67 | 22.53 | 73.56 | 33.87 | 267.74 | 31.02 | 324.40 | 0.7367 | -73.2 | -44.8 | |
|
previous
or next observation for the same group /

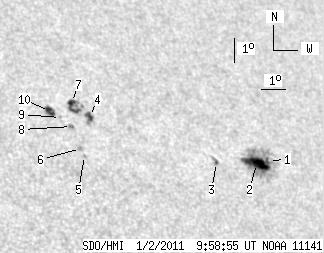

back to the solar disc SDO HMI 2011-01-02 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.25 | 62.19 | 0.19 | 46.34 | 33.45 | 270.69 | 33.97 | 321.61 | 0.7530 | -269.3 | -305.2 | |
| 15.97 | -1.00 | 11.88 | -1.00 | 33.32 | 270.12 | 33.40 | 321.91 | 0.7480 | -910.4 | 999999 | |
| 1.10 | 3.23 | 0.80 | 2.35 | 33.30 | 268.44 | 31.71 | 323.20 | 0.7358 | -644.5 | -478.0 | |
| 4.59 | 7.39 | 3.26 | 5.24 | 34.86 | 263.83 | 27.11 | 328.53 | 0.7186 | 651.3 | 647.5 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 33.40 | 263.13 | 26.41 | 327.85 | 0.7001 | 707.0 | 566.7 | |
| 0.00 | 2.72 | 0.00 | 1.88 | 33.66 | 263.06 | 26.34 | 328.15 | 0.7021 | 727.0 | 574.7 | |
| 2.89 | 13.76 | 2.05 | 9.78 | 35.37 | 263.29 | 26.57 | 329.46 | 0.7200 | 603.5 | 554.3 | |
| 0.00 | 2.72 | 0.00 | 1.90 | 34.47 | 262.97 | 26.25 | 328.95 | 0.7094 | 795.0 | 654.6 | |
| 0.00 | 0.93 | 0.00 | 0.66 | 34.79 | 262.64 | 25.92 | 329.54 | 0.7105 | 680.0 | 570.8 | |
| 6.20 | 6.71 | 4.35 | 4.71 | 35.01 | 262.28 | 25.56 | 330.06 | 0.7103 | 774.1 | 697.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
