SDO HMI 2011-01-02 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.70 | 93.94 | 24.07 | 69.57 | 33.81 | 267.86 | 32.23 | 323.37 | 0.7446 | -152.9 | -73.3 | |
|
previous
or next observation for the same group /

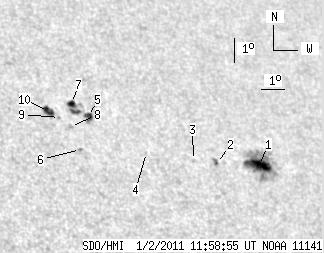

back to the solar disc SDO HMI 2011-01-02 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.01 | 59.38 | 13.57 | 44.83 | 33.28 | 270.16 | 34.53 | 321.02 | 0.7558 | -833.8 | -274.1 | |
| 1.27 | 3.23 | 0.94 | 2.38 | 33.29 | 268.38 | 32.75 | 322.37 | 0.7432 | -654.3 | -491.9 | |
| 0.00 | 1.10 | 0.00 | 0.81 | 33.37 | 267.45 | 31.83 | 323.18 | 0.7372 | -629.0 | -479.4 | |
| 0.00 | 0.76 | 0.00 | 0.55 | 33.61 | 265.61 | 29.98 | 324.91 | 0.7263 | -676.0 | -606.1 | |
| 3.31 | 6.12 | 2.37 | 4.38 | 34.88 | 263.72 | 28.09 | 327.69 | 0.7251 | 663.3 | 567.9 | |
| 0.00 | 1.10 | 0.00 | 0.77 | 33.64 | 262.95 | 27.32 | 327.24 | 0.7085 | 737.0 | 694.0 | |
| 3.65 | 11.38 | 2.62 | 8.16 | 35.36 | 263.21 | 27.58 | 328.56 | 0.7262 | 607.9 | 578.0 | |
| 0.00 | 2.04 | 0.00 | 1.44 | 34.49 | 262.85 | 27.22 | 328.10 | 0.7158 | 817.0 | 643.8 | |
| 0.00 | 1.10 | 0.00 | 0.78 | 34.81 | 262.52 | 26.89 | 328.68 | 0.7168 | 679.0 | 510.1 | |
| 6.46 | 7.73 | 4.57 | 5.47 | 35.03 | 262.15 | 26.52 | 329.20 | 0.7165 | 742.6 | 504.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
