SDO HMI 2011-01-02 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.86 | 262.39 | 33.53 | 149.68 | -13.82 | 207.62 | -28.01 | 112.99 | 0.4966 | -93.8 | -6.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-02 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

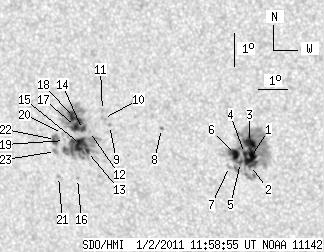

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.81 | 132.86 | 6.57 | 73.90 | -14.30 | 210.57 | -25.06 | 115.80 | 0.4578 | 1134.9 | 547.6 | |
| 1.95 | -1.00 | 1.09 | -1.00 | -14.54 | 210.54 | -25.09 | 116.26 | 0.4596 | 864.8 | 999999 | |
| 9.68 | -1.00 | 5.38 | -1.00 | -13.85 | 210.59 | -25.04 | 114.89 | 0.4549 | 1106.0 | 999999 | |
| 1.44 | -1.00 | 0.80 | -1.00 | -14.18 | 210.38 | -25.24 | 115.40 | 0.4597 | 948.5 | 999999 | |
| 1.36 | -1.00 | 0.76 | -1.00 | -14.45 | 210.22 | -25.41 | 115.81 | 0.4635 | 772.6 | 999999 | |
| 5.69 | -1.00 | 3.18 | -1.00 | -14.20 | 210.08 | -25.55 | 115.21 | 0.4641 | 908.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.24 | -14.56 | 209.83 | -25.80 | 115.74 | 0.4695 | 271.0 | 309.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -13.36 | 207.66 | -27.96 | 111.91 | 0.4938 | 706.0 | 583.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -13.23 | 205.88 | -29.75 | 110.64 | 0.5182 | -896.0 | -647.8 | |
| 0.00 | 2.04 | 0.00 | 1.18 | -13.01 | 205.70 | -29.93 | 110.15 | 0.5199 | -871.0 | -737.8 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -12.77 | 205.70 | -29.93 | 109.70 | 0.5190 | -826.0 | -748.0 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -13.39 | 205.16 | -30.47 | 110.56 | 0.5290 | -894.0 | -786.4 | |
| 1.53 | 52.92 | 0.89 | 30.99 | -13.98 | 205.00 | -30.63 | 111.56 | 0.5337 | -869.6 | -636.7 | |
| 2.55 | 53.09 | 1.49 | 31.06 | -13.32 | 204.92 | -30.71 | 110.32 | 0.5320 | -1084.3 | -438.3 | |
| 9.26 | -13.00 | 5.42 | -13.00 | -13.77 | 204.79 | -30.84 | 111.06 | 0.5357 | -1129.1 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -14.78 | 204.52 | -31.11 | 112.73 | 0.5437 | -701.0 | -574.4 | |
| 5.52 | -14.00 | 3.23 | -14.00 | -13.23 | 204.69 | -30.94 | 110.03 | 0.5349 | -1006.9 | 999999 | |
| 8.07 | -14.00 | 4.72 | -14.00 | -12.96 | 204.69 | -30.94 | 109.54 | 0.5338 | -1013.6 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.45 | -13.63 | 204.24 | -31.39 | 110.54 | 0.5427 | -638.0 | -521.4 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -13.42 | 204.20 | -31.43 | 110.15 | 0.5424 | -559.0 | -483.9 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -14.71 | 203.86 | -31.77 | 112.24 | 0.5524 | -630.0 | -476.3 | |
| 0.00 | 6.63 | 0.00 | 3.91 | -13.59 | 203.92 | -31.71 | 110.32 | 0.5469 | -730.0 | -637.7 | |
| 0.00 | 2.80 | 0.00 | 1.66 | -13.95 | 203.87 | -31.76 | 110.93 | 0.5491 | -541.0 | -405.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
