SDO HMI 2011-01-02 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.47 | 276.56 | 36.81 | 154.91 | -13.83 | 207.53 | -25.90 | 114.47 | 0.4671 | -106.8 | 29.4 | |
|
previous
or next observation for the same group /

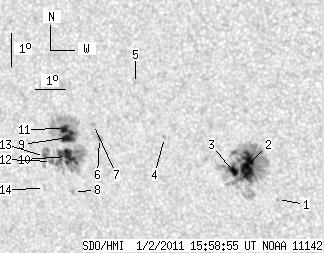

back to the solar disc SDO HMI 2011-01-02 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.60 | -15.22 | 211.56 | -21.87 | 120.63 | 0.4195 | -353.0 | -366.8 | |
| 23.52 | 135.53 | 12.86 | 74.11 | -14.18 | 210.68 | -22.74 | 117.52 | 0.4245 | 1199.0 | 525.2 | |
| 5.01 | -2.00 | 2.75 | -2.00 | -14.35 | 210.20 | -23.23 | 117.44 | 0.4323 | 941.8 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -13.28 | 208.02 | -25.41 | 113.43 | 0.4570 | 807.0 | 624.8 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -11.65 | 207.22 | -26.20 | 109.50 | 0.4607 | 561.0 | 368.2 | |
| 0.00 | 2.29 | 0.00 | 1.30 | -13.26 | 205.82 | -27.61 | 111.91 | 0.4882 | -973.0 | -697.6 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -12.84 | 205.67 | -27.76 | 110.99 | 0.4884 | -891.0 | -715.4 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -14.86 | 204.71 | -28.72 | 114.25 | 0.5115 | -618.0 | -579.7 | |
| 9.77 | 61.82 | 5.59 | 35.38 | -13.20 | 204.76 | -28.66 | 111.18 | 0.5029 | -1093.8 | -395.6 | |
| 17.66 | 69.80 | 10.14 | 40.08 | -13.77 | 204.62 | -28.81 | 112.17 | 0.5075 | -994.0 | -539.0 | |
| 5.01 | -9.00 | 2.87 | -9.00 | -12.93 | 204.66 | -28.77 | 110.60 | 0.5032 | -1030.3 | 999999 | |
| 1.95 | -10.00 | 1.13 | -10.00 | -13.91 | 204.08 | -29.35 | 112.11 | 0.5156 | -579.7 | 999999 | |
| 2.55 | -10.00 | 1.47 | -10.00 | -13.75 | 203.86 | -29.57 | 111.70 | 0.5180 | -597.9 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -14.71 | 203.72 | -29.71 | 113.37 | 0.5243 | -538.0 | -420.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
