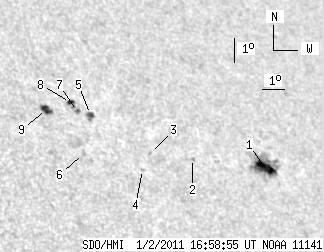

SDO HMI 2011-01-02 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.62 | 67.58 | 18.65 | 51.73 | 33.68 | 267.95 | 35.07 | 321.14 | 0.7636 | -84.0 | -110.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-02 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.82 | 44.16 | 10.03 | 34.59 | 33.17 | 270.32 | 37.44 | 318.88 | 0.7762 | -819.6 | -285.3 | |
| 0.00 | 0.93 | 0.00 | 0.70 | 33.43 | 267.26 | 34.38 | 321.30 | 0.7560 | -560.0 | -494.8 | |
| 0.00 | 1.10 | 0.00 | 0.82 | 33.56 | 265.53 | 32.65 | 322.72 | 0.7446 | -700.0 | -569.5 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 32.95 | 264.94 | 32.06 | 322.59 | 0.7356 | 482.0 | 385.0 | |
| 3.31 | 5.26 | 2.44 | 3.87 | 34.94 | 263.59 | 30.71 | 325.57 | 0.7428 | 569.2 | 652.0 | |
| 0.00 | 1.70 | 0.00 | 1.22 | 33.47 | 262.71 | 29.84 | 324.90 | 0.7242 | 672.0 | 623.4 | |
| 0.00 | 1.53 | 0.00 | 1.12 | 35.03 | 263.09 | 30.21 | 326.06 | 0.7403 | 826.0 | 721.6 | |
| 2.29 | 4.50 | 1.69 | 3.31 | 35.37 | 262.93 | 30.05 | 326.50 | 0.7422 | 569.5 | 608.7 | |
| 6.20 | 6.96 | 4.49 | 5.05 | 35.07 | 261.81 | 28.94 | 327.15 | 0.7324 | 704.5 | 486.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
