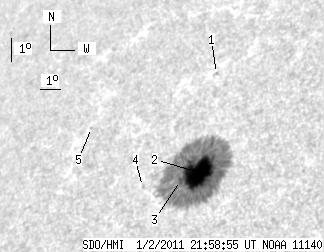

SDO HMI 2011-01-02 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.97 | 313.95 | 41.30 | 250.13 | 31.26 | 189.90 | -40.22 | 44.87 | 0.7846 | -977.7 | -285.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-02 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.72 | 34.89 | 188.73 | -41.38 | 41.85 | 0.8150 | 420.0 | 264.8 | |
| 50.19 | 311.40 | 39.87 | 247.94 | 31.25 | 189.95 | -40.17 | 44.85 | 0.7842 | -1081.5 | -289.2 | |
| 1.78 | -2.00 | 1.43 | -2.00 | 30.99 | 189.26 | -40.85 | 45.54 | 0.7879 | -369.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.70 | 30.84 | 187.59 | -42.53 | 46.69 | 0.7999 | -374.0 | -301.6 | |
| 0.00 | 0.85 | 0.00 | 0.77 | 33.12 | 183.69 | -46.42 | 46.41 | 0.8399 | 291.0 | 261.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
