SDO HMI 2011-01-02 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.62 | 0.00 | 5.71 | 26.83 | 182.48 | -47.64 | 53.71 | 0.8201 | 403.7 | 420.6 | |
|
previous
or next observation for the same group /

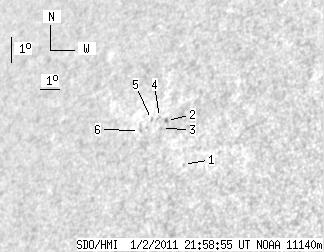

back to the solar disc SDO HMI 2011-01-02 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.56 | 25.49 | 184.35 | -45.77 | 54.30 | 0.7987 | -398.0 | -341.0 | |
| 0.00 | 1.44 | 0.00 | 1.24 | 27.04 | 182.72 | -47.40 | 53.37 | 0.8192 | 709.0 | 649.4 | |
| 0.00 | 1.36 | 0.00 | 1.17 | 26.77 | 182.62 | -47.49 | 53.71 | 0.8188 | 658.0 | 535.8 | |
| 0.00 | 0.85 | 0.00 | 0.74 | 27.16 | 182.30 | -47.81 | 53.43 | 0.8230 | 516.0 | 462.5 | |
| 0.00 | 1.44 | 0.00 | 1.26 | 27.11 | 181.94 | -48.18 | 53.66 | 0.8257 | 476.0 | 380.4 | |
| 0.00 | 0.85 | 0.00 | 0.74 | 26.75 | 181.54 | -48.57 | 54.23 | 0.8274 | 461.0 | 455.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
