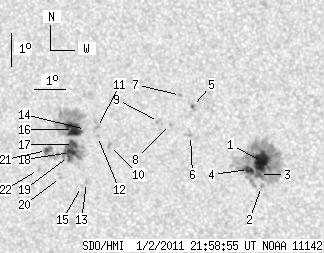

SDO HMI 2011-01-02 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.71 | 260.35 | 30.38 | 141.75 | -13.92 | 207.91 | -22.20 | 117.78 | 0.4155 | -50.9 | 38.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-02 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.60 | 135.95 | 9.94 | 72.66 | -14.25 | 210.82 | -19.29 | 121.30 | 0.3765 | 1299.8 | 500.0 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -15.00 | 210.75 | -19.36 | 122.95 | 0.3833 | 784.0 | 661.5 | |
| 4.16 | -1.00 | 2.23 | -1.00 | -14.63 | 210.72 | -19.39 | 122.09 | 0.3809 | 887.1 | 999999 | |
| 5.43 | -1.00 | 2.91 | -1.00 | -14.48 | 210.38 | -19.74 | 121.31 | 0.3844 | 954.7 | 999999 | |
| 1.02 | 2.29 | 0.55 | 1.23 | -12.56 | 208.74 | -21.38 | 115.08 | 0.3945 | 759.6 | 668.4 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -13.42 | 208.59 | -21.52 | 116.95 | 0.4020 | 883.0 | 635.1 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -12.22 | 208.38 | -21.74 | 113.96 | 0.3978 | 784.0 | 517.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -13.08 | 207.97 | -22.14 | 115.58 | 0.4087 | -811.0 | -572.1 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -12.98 | 207.59 | -22.52 | 115.02 | 0.4137 | 678.0 | 604.3 | |
| 0.00 | 2.38 | 0.00 | 1.31 | -13.67 | 205.90 | -24.21 | 115.09 | 0.4419 | -916.0 | -757.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -13.12 | 205.56 | -24.55 | 113.66 | 0.4437 | -1023.0 | -836.3 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -13.39 | 205.53 | -24.58 | 114.21 | 0.4456 | -843.0 | -712.4 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -14.76 | 205.00 | -25.11 | 116.61 | 0.4609 | -790.0 | -652.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -13.17 | 205.16 | -24.96 | 113.46 | 0.4498 | -567.0 | -462.0 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -14.87 | 204.82 | -25.29 | 116.70 | 0.4641 | -689.0 | -466.2 | |
| 15.63 | 58.17 | 8.68 | 32.34 | -13.16 | 204.76 | -25.36 | 113.15 | 0.4555 | -1155.8 | -375.2 | |
| 4.16 | 32.52 | 2.32 | 18.12 | -13.61 | 204.70 | -25.41 | 114.04 | 0.4586 | -1173.3 | -775.7 | |
| 3.99 | -17.00 | 2.23 | -17.00 | -13.85 | 204.58 | -25.54 | 114.43 | 0.4617 | -1128.4 | 999999 | |
| 1.02 | -17.00 | 0.57 | -17.00 | -13.96 | 204.49 | -25.62 | 114.61 | 0.4635 | -994.6 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -14.59 | 204.15 | -25.97 | 115.60 | 0.4718 | -683.0 | -550.8 | |
| 1.70 | 12.23 | 0.95 | 6.86 | -13.77 | 203.78 | -26.34 | 113.70 | 0.4726 | -745.2 | -654.0 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -14.33 | 203.43 | -26.68 | 114.57 | 0.4803 | -565.0 | -452.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
