SDO HMI 2011-01-02 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.52 | 0.00 | 4.66 | 26.93 | 182.45 | -46.56 | 53.07 | 0.8120 | 574.8 | 504.9 | |
|
previous
or next observation for the same group /

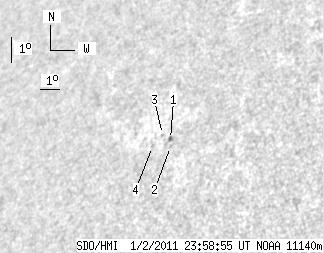

back to the solar disc SDO HMI 2011-01-02 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.64 | 27.01 | 182.74 | -46.27 | 52.84 | 0.8100 | 739.0 | 658.7 | |
| 0.00 | 1.02 | 0.00 | 0.85 | 26.77 | 182.87 | -46.14 | 53.05 | 0.8079 | 590.0 | 434.4 | |
| 0.00 | 0.85 | 0.00 | 0.72 | 27.20 | 182.25 | -46.76 | 52.87 | 0.8149 | 560.0 | 529.7 | |
| 0.00 | 1.70 | 0.00 | 1.45 | 26.81 | 181.98 | -47.03 | 53.44 | 0.8153 | 410.0 | 359.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
