SDO HMI 2011-01-03 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.88 | 58.87 | 16.00 | 47.96 | 33.70 | 267.97 | 39.50 | 318.22 | 0.7956 | -23.3 | -119.5 | |
|
previous
or next observation for the same group /

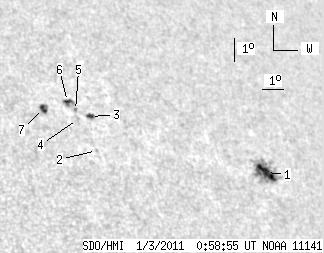

back to the solar disc SDO HMI 2011-01-03 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.62 | 39.67 | 8.89 | 33.23 | 33.10 | 270.42 | 41.95 | 316.01 | 0.8086 | -686.9 | -315.9 | |
| 0.00 | 1.19 | 0.00 | 0.90 | 33.62 | 263.02 | 34.56 | 321.38 | 0.7591 | 464.0 | 352.3 | |
| 2.89 | 3.40 | 2.24 | 2.63 | 34.89 | 263.36 | 34.90 | 322.38 | 0.7710 | 454.1 | 447.3 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 34.76 | 262.73 | 34.27 | 322.70 | 0.7657 | 595.0 | 425.6 | |
| 0.00 | 1.44 | 0.00 | 1.11 | 35.09 | 262.80 | 34.34 | 322.97 | 0.7688 | 570.0 | 481.2 | |
| 2.63 | 6.12 | 2.04 | 4.73 | 35.43 | 262.61 | 34.15 | 323.43 | 0.7701 | 540.6 | 572.3 | |
| 3.74 | 5.69 | 2.83 | 4.32 | 35.12 | 261.43 | 32.97 | 324.02 | 0.7598 | 676.3 | 575.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
