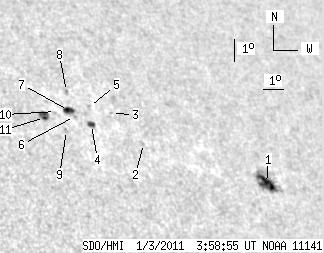

SDO HMI 2011-01-03 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.85 | 48.15 | 19.01 | 39.76 | 33.98 | 266.82 | 40.00 | 318.21 | 0.8012 | -100.8 | 69.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.93 | 25.32 | 11.98 | 21.80 | 33.00 | 270.36 | 43.54 | 315.02 | 0.8196 | -679.7 | -290.7 | |
| 0.00 | 1.10 | 0.00 | 0.89 | 34.27 | 265.30 | 38.48 | 319.34 | 0.7915 | -469.0 | -361.4 | |
| 0.00 | 0.59 | 0.00 | 0.48 | 35.35 | 264.43 | 37.61 | 320.97 | 0.7928 | -551.0 | -502.3 | |
| 3.06 | 3.57 | 2.42 | 2.82 | 34.89 | 263.28 | 36.46 | 321.30 | 0.7819 | 479.7 | 376.2 | |
| 0.00 | 1.19 | 0.00 | 0.95 | 35.58 | 263.55 | 36.73 | 321.78 | 0.7886 | 430.0 | 314.1 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 35.17 | 262.67 | 35.84 | 321.99 | 0.7797 | 613.0 | 502.0 | |
| 5.10 | 6.20 | 4.02 | 4.89 | 35.39 | 262.51 | 35.69 | 322.31 | 0.7803 | 574.2 | 476.8 | |
| 0.00 | 1.10 | 0.00 | 0.88 | 36.12 | 262.80 | 35.98 | 322.81 | 0.7874 | 505.0 | 422.0 | |
| 0.00 | 1.27 | 0.00 | 0.99 | 34.63 | 262.04 | 35.22 | 321.90 | 0.7715 | 584.0 | 413.1 | |
| 0.00 | 0.59 | 0.00 | 0.46 | 35.33 | 261.90 | 35.08 | 322.68 | 0.7758 | 456.0 | 458.7 | |
| 0.76 | 6.20 | 0.59 | 4.80 | 35.09 | 261.30 | 34.48 | 322.88 | 0.7699 | 820.9 | 618.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
