SDO HMI 2011-01-03 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.44 | 0.00 | 5.06 | 27.08 | 182.47 | -42.17 | 50.53 | 0.7765 | 390.7 | 456.4 | |
|
previous
or next observation for the same group /

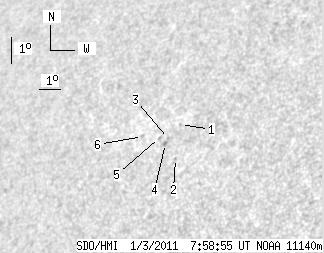

back to the solar disc SDO HMI 2011-01-03 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.73 | 27.57 | 182.99 | -41.66 | 49.69 | 0.7749 | 595.0 | 594.4 | |
| 0.00 | 0.59 | 0.00 | 0.46 | 26.41 | 183.29 | -41.35 | 50.82 | 0.7657 | -385.0 | -297.9 | |
| 0.00 | 0.93 | 0.00 | 0.73 | 27.11 | 182.66 | -41.98 | 50.40 | 0.7750 | 372.0 | 429.7 | |
| 0.00 | 2.12 | 0.00 | 1.66 | 26.94 | 182.61 | -42.03 | 50.62 | 0.7746 | 676.0 | 606.6 | |
| 0.00 | 0.68 | 0.00 | 0.53 | 27.16 | 182.24 | -42.41 | 50.59 | 0.7790 | 658.0 | 606.0 | |
| 0.00 | 1.19 | 0.00 | 0.95 | 27.23 | 181.43 | -43.21 | 50.96 | 0.7861 | 428.0 | 387.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
