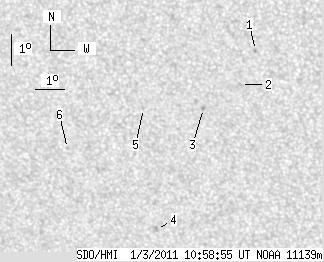

SDO HMI 2011-01-03 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.83 | 0.00 | 4.99 | -28.00 | 207.40 | -15.61 | 150.63 | 0.4845 | 469.3 | 442.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.60 | -25.11 | 210.45 | -12.56 | 152.19 | 0.4239 | 869.0 | 761.5 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -26.19 | 209.82 | -13.18 | 152.37 | 0.4430 | 528.0 | 418.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -26.95 | 208.48 | -14.53 | 150.98 | 0.4630 | 922.0 | 740.8 | |
| 0.00 | 2.72 | 0.00 | 1.58 | -30.88 | 206.22 | -16.79 | 151.97 | 0.5295 | 698.0 | 577.2 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -26.92 | 206.42 | -16.59 | 147.74 | 0.4788 | 563.0 | 441.9 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -28.16 | 203.55 | -19.46 | 145.28 | 0.5177 | -764.0 | -557.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
