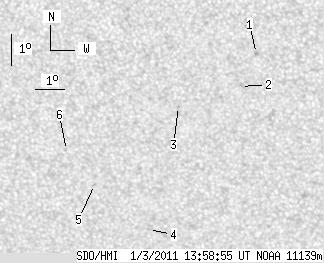

SDO HMI 2011-01-03 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.68 | 0.00 | 3.20 | -27.59 | 207.21 | -14.15 | 152.62 | 0.4686 | 247.0 | 261.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.83 | -25.22 | 210.45 | -10.91 | 155.45 | 0.4138 | 886.0 | 724.4 | |
| 0.00 | 0.59 | 0.00 | 0.33 | -26.27 | 209.82 | -11.54 | 155.39 | 0.4327 | 625.0 | 598.9 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -26.89 | 207.65 | -13.71 | 152.27 | 0.4561 | 716.0 | 604.2 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -30.90 | 206.04 | -15.33 | 154.02 | 0.5198 | 597.0 | 496.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -29.38 | 204.37 | -16.99 | 150.07 | 0.5124 | -716.0 | -519.8 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -28.26 | 203.58 | -17.78 | 147.66 | 0.5048 | -626.0 | -503.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
