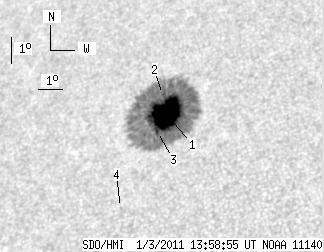

SDO HMI 2011-01-03 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.07 | 354.60 | 40.67 | 253.10 | 31.24 | 189.48 | -31.88 | 38.93 | 0.7211 | -1075.2 | -294.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.21 | 354.01 | 39.34 | 252.69 | 31.25 | 189.49 | -31.87 | 38.91 | 0.7211 | -1102.4 | -293.4 | |
| 0.76 | -1.00 | 0.55 | -1.00 | 31.94 | 189.05 | -32.31 | 38.55 | 0.7301 | 42.9 | 999999 | |
| 1.10 | -1.00 | 0.78 | -1.00 | 30.61 | 189.36 | -32.00 | 39.66 | 0.7169 | -1024.2 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.41 | 27.98 | 188.82 | -32.54 | 42.92 | 0.7000 | -660.0 | -579.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
