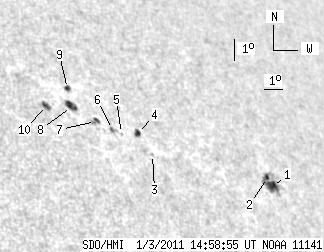

SDO HMI 2011-01-03 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.26 | 48.58 | 20.91 | 44.04 | 34.07 | 266.21 | 45.40 | 315.25 | 0.8387 | -2.0 | 11.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.96 | 20.81 | 6.73 | 20.15 | 32.81 | 270.47 | 49.66 | 311.77 | 0.8609 | -614.8 | -290.1 | |
| 1.70 | -1.00 | 1.65 | -1.00 | 33.14 | 270.44 | 49.63 | 312.11 | 0.8621 | -436.5 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.97 | 33.73 | 264.89 | 44.08 | 315.48 | 0.8275 | -589.0 | -467.0 | |
| 2.80 | 3.48 | 2.47 | 3.07 | 34.49 | 264.65 | 43.84 | 316.39 | 0.8299 | -433.6 | -214.1 | |
| 0.00 | 1.02 | 0.00 | 0.89 | 34.45 | 263.83 | 43.02 | 316.81 | 0.8242 | 263.0 | 220.5 | |
| 0.00 | 2.38 | 0.00 | 2.06 | 34.59 | 263.48 | 42.67 | 317.14 | 0.8225 | 588.0 | 392.4 | |
| 0.00 | 4.76 | 0.00 | 4.09 | 34.86 | 262.82 | 42.01 | 317.79 | 0.8196 | 654.0 | 493.6 | |
| 6.03 | 7.90 | 5.15 | 6.75 | 35.38 | 261.99 | 41.18 | 318.80 | 0.8172 | 472.4 | 412.0 | |
| 2.29 | 2.80 | 1.99 | 2.43 | 36.07 | 262.23 | 41.42 | 319.33 | 0.8228 | 355.9 | 285.0 | |
| 3.48 | 4.33 | 2.92 | 3.63 | 35.37 | 260.79 | 39.98 | 319.51 | 0.8091 | 623.8 | 638.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
