SDO HMI 2011-01-03 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.63 | 211.17 | 24.21 | 109.33 | -14.01 | 207.83 | -12.98 | 131.57 | 0.2914 | -99.2 | 20.9 | |
|
previous
or next observation for the same group /

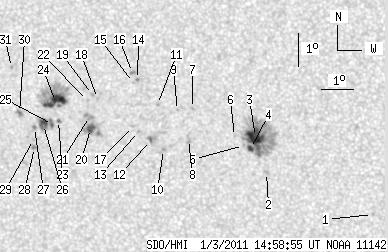

back to the solar disc SDO HMI 2011-01-03 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.74 | -16.78 | 214.49 | -6.32 | 155.75 | 0.2576 | -699.0 | -516.0 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -15.48 | 211.26 | -9.55 | 143.01 | 0.2669 | 992.0 | 763.1 | |
| 14.95 | 87.30 | 7.66 | 44.70 | -14.40 | 210.97 | -9.84 | 139.49 | 0.2559 | 1300.4 | 599.3 | |
| 2.89 | -3.00 | 1.48 | -3.00 | -14.76 | 210.80 | -10.01 | 139.94 | 0.2623 | 891.1 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -14.66 | 210.59 | -10.22 | 139.12 | 0.2635 | 649.0 | 493.5 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -14.39 | 210.32 | -10.49 | 137.69 | 0.2631 | 595.0 | 385.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -13.54 | 209.07 | -11.74 | 132.18 | 0.2683 | 928.0 | 748.4 | |
| 0.00 | 3.23 | 0.00 | 1.66 | -14.46 | 208.89 | -11.92 | 134.32 | 0.2807 | 725.0 | 652.6 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -13.59 | 208.60 | -12.21 | 131.25 | 0.2747 | 686.0 | 577.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.76 | 208.10 | -12.71 | 133.28 | 0.2936 | -985.0 | -786.8 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -13.40 | 207.99 | -12.82 | 129.39 | 0.2806 | 803.0 | 601.5 | |
| 1.02 | 5.35 | 0.53 | 2.77 | -14.48 | 207.71 | -13.10 | 131.73 | 0.2955 | -773.3 | -503.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.21 | 207.35 | -13.46 | 130.27 | 0.2971 | 932.0 | 640.5 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -12.65 | 207.41 | -13.40 | 126.01 | 0.2809 | 928.0 | 792.6 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -12.74 | 207.28 | -13.53 | 126.02 | 0.2835 | 705.0 | 584.7 | |
| 0.00 | 2.29 | 0.00 | 1.18 | -12.44 | 207.26 | -13.55 | 125.11 | 0.2809 | 1010.0 | 897.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -14.05 | 207.17 | -13.64 | 129.50 | 0.2978 | 807.0 | 479.8 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -13.20 | 206.13 | -14.68 | 125.22 | 0.3034 | -865.0 | -737.1 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -13.08 | 205.98 | -14.83 | 124.62 | 0.3043 | -969.0 | -778.7 | |
| 4.59 | 13.84 | 2.39 | 7.22 | -14.10 | 205.85 | -14.96 | 127.14 | 0.3155 | -1114.3 | -783.5 | |
| 0.00 | 5.35 | 0.00 | 2.79 | -13.74 | 205.84 | -14.97 | 126.17 | 0.3122 | -935.0 | -915.3 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -13.26 | 205.81 | -15.00 | 124.82 | 0.3082 | -928.0 | -674.6 | |
| 0.34 | 1.44 | 0.18 | 0.76 | -13.84 | 204.86 | -15.95 | 124.81 | 0.3264 | -965.8 | -752.8 | |
| 13.33 | 52.74 | 6.97 | 27.57 | -13.27 | 204.81 | -16.00 | 123.22 | 0.3222 | -1174.3 | -502.6 | |
| 1.53 | 12.82 | 0.80 | 6.73 | -13.96 | 204.66 | -16.15 | 124.80 | 0.3301 | -898.9 | -755.1 | |
| 6.62 | -25.00 | 3.48 | -25.00 | -13.95 | 204.38 | -16.43 | 124.34 | 0.3340 | -970.1 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -14.04 | 204.09 | -16.72 | 124.11 | 0.3387 | -871.0 | -644.5 | |
| 0.00 | 2.12 | 0.00 | 1.12 | -14.64 | 204.04 | -16.77 | 125.54 | 0.3446 | -856.0 | -717.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -14.40 | 204.03 | -16.78 | 124.92 | 0.3426 | -707.0 | -525.4 | |
| 1.36 | 3.23 | 0.72 | 1.70 | -13.58 | 203.64 | -17.17 | 122.30 | 0.3409 | -867.4 | -806.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -12.23 | 203.49 | -17.32 | 118.54 | 0.3327 | -790.0 | -630.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
