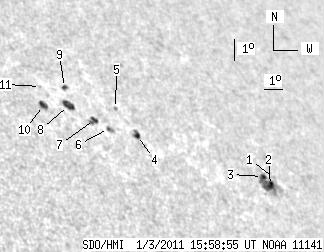

SDO HMI 2011-01-03 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.52 | 54.01 | 20.98 | 49.70 | 34.08 | 266.49 | 46.23 | 314.83 | 0.8442 | 133.1 | -145.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 2.45 | 33.11 | 270.98 | 50.72 | 311.60 | 0.8691 | 247.0 | 174.8 | |
| 3.57 | 22.33 | 3.50 | 21.88 | 32.84 | 270.54 | 50.28 | 311.52 | 0.8652 | -561.0 | -392.4 | |
| 2.12 | -2.00 | 2.08 | -2.00 | 33.16 | 270.35 | 50.09 | 311.93 | 0.8652 | -483.0 | 999999 | |
| 2.38 | 4.67 | 2.12 | 4.16 | 34.40 | 264.69 | 44.43 | 315.98 | 0.8334 | -410.8 | -275.3 | |
| 0.00 | 1.19 | 0.00 | 1.07 | 35.38 | 264.25 | 43.99 | 317.21 | 0.8357 | -478.0 | -361.6 | |
| 0.42 | 3.40 | 0.37 | 2.97 | 34.60 | 263.38 | 43.12 | 316.90 | 0.8257 | 490.8 | 307.1 | |
| 2.29 | 4.67 | 1.99 | 4.05 | 34.92 | 262.89 | 42.63 | 317.49 | 0.8242 | 388.8 | 555.8 | |
| 6.71 | 7.56 | 5.78 | 6.51 | 35.40 | 261.93 | 41.68 | 318.52 | 0.8206 | 485.8 | 336.7 | |
| 1.87 | 2.63 | 1.63 | 2.30 | 36.09 | 262.18 | 41.92 | 319.06 | 0.8262 | 366.6 | 324.0 | |
| 4.16 | 4.59 | 3.51 | 3.87 | 35.35 | 260.70 | 40.44 | 319.21 | 0.8121 | 597.2 | 450.2 | |
| 0.00 | 0.51 | 0.00 | 0.44 | 36.08 | 261.01 | 40.75 | 319.74 | 0.8185 | 447.0 | 416.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
