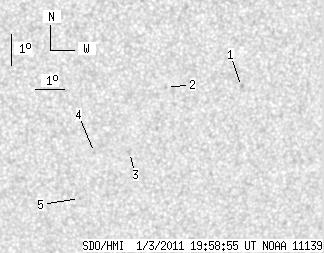

SDO HMI 2011-01-03 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.20 | 0.00 | 3.49 | -28.12 | 232.15 | 14.10 | 207.07 | 0.4762 | -154.2 | -149.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.91 | -26.61 | 235.01 | 16.97 | 213.25 | 0.4779 | 747.0 | 592.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -26.68 | 232.45 | 14.41 | 209.16 | 0.4582 | 668.0 | 475.2 | |
| 0.00 | 2.04 | 0.00 | 1.15 | -28.80 | 231.46 | 13.41 | 205.20 | 0.4794 | -683.0 | -584.0 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -28.81 | 230.26 | 12.21 | 203.22 | 0.4720 | -826.0 | -705.1 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -30.33 | 229.92 | 11.87 | 201.29 | 0.4910 | -677.0 | -542.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
