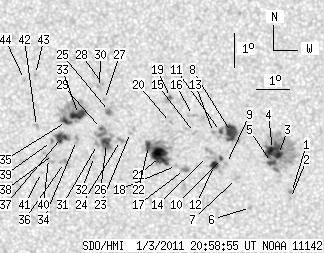

SDO HMI 2011-01-03 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.84 | 302.62 | 46.00 | 154.92 | -14.12 | 207.80 | -9.69 | 139.86 | 0.2531 | -186.3 | -51.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.66 | 211.46 | -6.03 | 154.73 | 0.2381 | 987.0 | 797.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.84 | 211.43 | -6.07 | 154.93 | 0.2411 | 779.0 | 596.8 | |
| 3.57 | 81.60 | 1.81 | 41.44 | -14.51 | 211.10 | -6.40 | 151.02 | 0.2236 | 1327.5 | 576.0 | |
| 10.44 | -3.00 | 5.31 | -3.00 | -14.36 | 210.92 | -6.58 | 150.00 | 0.2229 | 1189.2 | 999999 | |
| 3.31 | -3.00 | 1.68 | -3.00 | -14.75 | 210.88 | -6.62 | 150.73 | 0.2290 | 976.1 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -16.10 | 210.18 | -7.31 | 151.16 | 0.2546 | 818.0 | 649.4 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -15.22 | 209.79 | -7.71 | 147.99 | 0.2453 | 825.0 | 688.4 | |
| 13.59 | 22.93 | 6.91 | 11.66 | -13.84 | 209.68 | -7.81 | 144.26 | 0.2270 | 1151.9 | 740.5 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -14.77 | 209.49 | -8.00 | 145.98 | 0.2417 | 898.0 | 681.0 | |
| 1.19 | 14.10 | 0.61 | 7.20 | -14.62 | 209.35 | -8.15 | 145.13 | 0.2410 | 944.5 | 522.3 | |
| 1.36 | -8.00 | 0.69 | -8.00 | -13.81 | 209.34 | -8.15 | 143.03 | 0.2300 | 936.2 | 999999 | |
| 4.59 | -10.00 | 2.34 | -10.00 | -14.83 | 209.12 | -8.37 | 144.92 | 0.2460 | 910.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -13.84 | 209.13 | -8.37 | 142.40 | 0.2326 | 868.0 | 642.7 | |
| 0.00 | 0.59 | 0.00 | 0.30 | -14.55 | 208.92 | -8.58 | 143.60 | 0.2444 | -18.0 | -42.4 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -13.83 | 208.55 | -8.95 | 140.53 | 0.2387 | 595.0 | 383.0 | |
| 0.00 | 2.80 | 0.00 | 1.43 | -13.32 | 208.50 | -8.99 | 138.96 | 0.2327 | 879.0 | 693.6 | |
| 0.00 | 4.59 | 0.00 | 2.35 | -14.94 | 208.19 | -9.30 | 142.35 | 0.2569 | -996.0 | -725.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -14.82 | 207.95 | -9.54 | 141.34 | 0.2578 | -848.0 | -708.3 | |
| 0.42 | 3.99 | 0.22 | 2.03 | -12.78 | 207.85 | -9.64 | 135.36 | 0.2336 | 1111.6 | 880.9 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -13.52 | 207.82 | -9.67 | 137.50 | 0.2429 | 804.0 | 557.5 | |
| 17.83 | 44.07 | 9.14 | 22.58 | -14.54 | 207.47 | -10.03 | 139.28 | 0.2595 | -1140.5 | -462.8 | |
| 4.16 | -21.00 | 2.13 | -21.00 | -14.21 | 207.11 | -10.38 | 137.42 | 0.2594 | -1081.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -13.81 | 206.58 | -10.92 | 134.92 | 0.2610 | 557.0 | 599.1 | |
| 0.00 | 3.65 | 0.00 | 1.88 | -14.05 | 206.25 | -11.24 | 134.77 | 0.2676 | -975.0 | -727.0 | |
| 0.00 | 4.25 | 0.00 | 2.18 | -13.18 | 205.96 | -11.54 | 131.56 | 0.2614 | -1132.0 | -942.8 | |
| 7.73 | 11.21 | 3.98 | 5.77 | -14.13 | 205.82 | -11.68 | 133.93 | 0.2738 | -1106.1 | -852.1 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -12.82 | 205.82 | -11.67 | 130.15 | 0.2593 | -873.0 | -657.7 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.34 | 205.78 | -11.71 | 128.58 | 0.2549 | -966.0 | -845.6 | |
| 1.10 | 7.30 | 0.57 | 3.76 | -13.68 | 205.68 | -11.81 | 132.37 | 0.2704 | -1057.4 | -1005.7 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -12.46 | 205.68 | -11.81 | 128.73 | 0.2574 | -924.0 | -770.1 | |
| 0.00 | 2.46 | 0.00 | 1.27 | -14.16 | 205.54 | -11.96 | 133.34 | 0.2775 | -782.0 | -668.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -14.52 | 205.42 | -12.07 | 134.04 | 0.2829 | -612.0 | -501.1 | |
| 9.34 | 46.96 | 4.81 | 24.19 | -13.25 | 204.99 | -12.50 | 129.58 | 0.2746 | -1270.2 | -504.6 | |
| 0.00 | 3.48 | 0.00 | 1.80 | -14.03 | 204.89 | -12.61 | 131.54 | 0.2841 | -655.0 | -742.5 | |
| 4.16 | -33.00 | 2.15 | -33.00 | -13.46 | 204.61 | -12.88 | 129.35 | 0.2817 | -1030.6 | 999999 | |
| 0.00 | 4.76 | 0.00 | 2.46 | -14.69 | 204.48 | -13.02 | 132.39 | 0.2963 | -893.0 | -721.0 | |
| 7.05 | 11.04 | 3.65 | 5.71 | -13.94 | 204.43 | -13.07 | 130.29 | 0.2890 | -1047.9 | -858.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -14.44 | 204.15 | -13.35 | 131.06 | 0.2978 | -853.0 | -615.6 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -14.05 | 204.11 | -13.39 | 129.95 | 0.2943 | -753.0 | -629.5 | |
| 0.00 | 5.18 | 0.00 | 2.69 | -14.56 | 203.98 | -13.51 | 131.04 | 0.3011 | -830.0 | -637.1 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -14.98 | 203.74 | -13.76 | 131.61 | 0.3086 | -652.0 | -529.9 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -13.60 | 203.67 | -13.83 | 127.83 | 0.2954 | -1012.0 | -693.2 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -12.04 | 203.72 | -13.77 | 123.42 | 0.2802 | -922.0 | -745.8 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -12.19 | 203.38 | -14.12 | 123.23 | 0.2864 | -616.0 | -575.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
