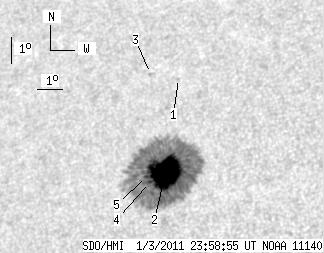

SDO HMI 2011-01-03 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.26 | 371.57 | 42.08 | 251.63 | 31.26 | 189.15 | -26.69 | 34.31 | 0.6833 | -1143.9 | -335.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-03 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.79 | 34.70 | 188.56 | -27.28 | 31.67 | 0.7200 | 587.0 | 433.0 | |
| 60.22 | 369.20 | 40.70 | 249.92 | 31.25 | 189.19 | -26.65 | 34.29 | 0.6829 | -1249.9 | -342.0 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 34.92 | 187.34 | -28.50 | 32.53 | 0.7298 | 527.0 | 494.5 | |
| 0.68 | -2.00 | 0.46 | -2.00 | 30.91 | 188.68 | -27.16 | 35.11 | 0.6833 | -814.2 | 999999 | |
| 1.36 | -2.00 | 0.92 | -2.00 | 31.13 | 188.50 | -27.34 | 35.07 | 0.6868 | -673.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
