SDO HMI 2011-01-04 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.75 | 293.77 | 49.73 | 149.51 | -14.16 | 208.01 | -7.28 | 147.68 | 0.2292 | -48.7 | 11.8 | |
|
previous
or next observation for the same group /

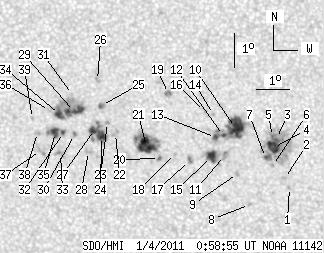

back to the solar disc SDO HMI 2011-01-04 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -15.70 | 211.53 | -3.76 | 163.59 | 0.2245 | 893.0 | 684.7 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.43 | 211.39 | -3.91 | 162.61 | 0.2208 | 843.0 | 591.4 | |
| 0.68 | 70.92 | 0.34 | 35.89 | -14.22 | 211.16 | -4.13 | 159.74 | 0.2025 | 1223.6 | 569.5 | |
| 9.60 | -3.00 | 4.86 | -3.00 | -14.49 | 211.07 | -4.23 | 159.79 | 0.2074 | 1311.2 | 999999 | |
| 0.85 | -3.00 | 0.43 | -3.00 | -14.16 | 211.04 | -4.25 | 159.09 | 0.2023 | 1093.9 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.04 | 211.03 | -4.27 | 160.51 | 0.2164 | 743.0 | 595.1 | |
| 0.93 | -3.00 | 0.47 | -3.00 | -14.79 | 210.82 | -4.48 | 159.22 | 0.2137 | 794.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -16.21 | 210.29 | -5.00 | 159.44 | 0.2394 | 813.0 | 560.2 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -15.27 | 209.95 | -5.34 | 156.55 | 0.2268 | 863.0 | 775.6 | |
| 21.74 | 44.08 | 11.00 | 22.32 | -13.89 | 209.92 | -5.37 | 153.65 | 0.2057 | 1155.0 | 789.7 | |
| 0.00 | 3.82 | 0.00 | 1.94 | -14.73 | 209.56 | -5.73 | 153.99 | 0.2212 | 1035.0 | 887.6 | |
| 1.44 | -10.00 | 0.73 | -10.00 | -14.13 | 209.55 | -5.74 | 152.64 | 0.2122 | 1012.8 | 999999 | |
| 2.46 | -10.00 | 1.25 | -10.00 | -14.19 | 209.30 | -5.99 | 151.79 | 0.2150 | 812.3 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -13.50 | 209.26 | -6.03 | 149.97 | 0.2052 | 1015.0 | 712.5 | |
| 7.90 | 15.20 | 4.01 | 7.73 | -14.76 | 209.16 | -6.13 | 152.51 | 0.2247 | 851.9 | 419.2 | |
| 0.00 | 0.59 | 0.00 | 0.30 | -13.40 | 208.99 | -6.30 | 148.64 | 0.2062 | 924.0 | 737.0 | |
| 0.00 | 2.80 | 0.00 | 1.43 | -14.87 | 208.49 | -6.81 | 150.26 | 0.2319 | -985.0 | -902.0 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -14.66 | 208.06 | -7.23 | 148.27 | 0.2325 | -749.0 | -599.5 | |
| 0.00 | 3.82 | 0.00 | 1.94 | -12.86 | 207.91 | -7.39 | 142.95 | 0.2090 | 1192.0 | 929.2 | |
| 1.36 | 1.70 | 0.69 | 0.87 | -14.80 | 207.57 | -7.73 | 146.91 | 0.2391 | -881.0 | -732.0 | |
| 16.56 | 36.35 | 8.44 | 18.52 | -14.44 | 207.18 | -8.11 | 144.74 | 0.2378 | -1203.2 | -630.4 | |
| 0.00 | 3.40 | 0.00 | 1.73 | -14.04 | 206.24 | -9.05 | 140.72 | 0.2421 | -813.0 | -703.1 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -13.71 | 206.01 | -9.28 | 139.10 | 0.2404 | -855.0 | -614.0 | |
| 7.22 | 22.17 | 3.69 | 11.33 | -14.13 | 205.81 | -9.48 | 139.65 | 0.2480 | -1174.5 | -873.4 | |
| 0.00 | 3.31 | 0.00 | 1.69 | -13.20 | 205.85 | -9.45 | 137.14 | 0.2360 | -1171.0 | -989.2 | |
| 0.00 | 2.55 | 0.00 | 1.30 | -12.45 | 205.75 | -9.54 | 134.55 | 0.2282 | -917.0 | -765.5 | |
| 4.84 | -24.00 | 2.47 | -24.00 | -13.92 | 205.60 | -9.69 | 138.47 | 0.2476 | -1103.2 | 999999 | |
| 0.00 | 3.14 | 0.00 | 1.61 | -14.58 | 205.39 | -9.90 | 139.63 | 0.2582 | -802.0 | -584.2 | |
| 9.85 | 39.16 | 5.04 | 20.02 | -13.37 | 205.01 | -10.28 | 135.26 | 0.2479 | -1187.0 | -538.2 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -14.06 | 204.98 | -10.31 | 137.13 | 0.2564 | -1019.0 | -880.3 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.86 | 204.97 | -10.32 | 133.63 | 0.2425 | -114.0 | -123.7 | |
| 1.53 | 12.06 | 0.78 | 6.19 | -14.00 | 204.64 | -10.65 | 136.05 | 0.2596 | -1077.4 | -691.4 | |
| 0.00 | 4.59 | 0.00 | 2.36 | -14.63 | 204.52 | -10.77 | 137.42 | 0.2686 | -903.0 | -695.0 | |
| 5.78 | -29.00 | 2.96 | -29.00 | -13.46 | 204.54 | -10.75 | 134.27 | 0.2545 | -919.7 | 999999 | |
| 5.01 | -32.00 | 2.57 | -32.00 | -13.99 | 204.39 | -10.90 | 135.41 | 0.2625 | -1011.0 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -13.33 | 204.24 | -11.05 | 133.13 | 0.2568 | -82.0 | -105.9 | |
| 0.00 | 3.65 | 0.00 | 1.88 | -14.53 | 203.90 | -11.39 | 135.62 | 0.2745 | -576.0 | -667.2 | |
| 0.00 | 2.72 | 0.00 | 1.40 | -13.99 | 203.84 | -11.45 | 134.00 | 0.2691 | -691.0 | -617.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -13.57 | 203.70 | -11.59 | 132.49 | 0.2660 | -985.0 | -736.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
