SDO HMI 2011-01-04 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.33 | 267.61 | 43.64 | 135.36 | -14.17 | 208.25 | -3.76 | 161.81 | 0.2031 | -95.2 | -9.5 | |
|
previous
or next observation for the same group /

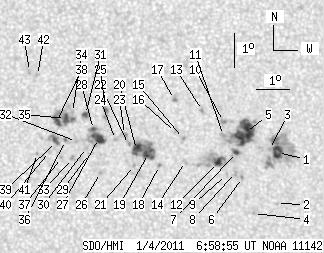

back to the solar disc SDO HMI 2011-01-04 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.67 | 55.23 | 4.37 | 27.87 | -14.49 | 211.17 | -0.84 | 175.77 | 0.1942 | 1247.1 | 563.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -16.02 | 211.14 | -0.88 | 176.14 | 0.2205 | 648.0 | 525.8 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -14.39 | 210.93 | -1.09 | 174.51 | 0.1930 | 894.0 | 855.4 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -16.32 | 210.43 | -1.59 | 173.23 | 0.2268 | 861.0 | 634.6 | |
| 28.47 | 44.69 | 14.35 | 22.53 | -13.88 | 210.20 | -1.81 | 170.44 | 0.1859 | 1160.1 | 709.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -15.24 | 210.10 | -1.92 | 171.08 | 0.2091 | 882.0 | 737.8 | |
| 2.04 | 3.82 | 1.03 | 1.93 | -14.48 | 209.92 | -2.09 | 169.61 | 0.1969 | 1021.4 | 775.4 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -15.08 | 209.89 | -2.13 | 169.98 | 0.2072 | 851.0 | 710.9 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.14 | 209.61 | -2.40 | 168.78 | 0.2090 | 603.0 | 431.0 | |
| 0.00 | 2.38 | 0.00 | 1.20 | -13.55 | 209.54 | -2.48 | 166.63 | 0.1826 | 935.0 | 803.1 | |
| 0.00 | 2.80 | 0.00 | 1.41 | -13.97 | 209.53 | -2.48 | 167.13 | 0.1896 | 208.0 | 264.3 | |
| 3.65 | 23.71 | 1.85 | 11.99 | -14.78 | 209.37 | -2.64 | 167.30 | 0.2038 | 1098.6 | 324.5 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -13.22 | 208.91 | -3.11 | 162.84 | 0.1800 | 1148.0 | 792.7 | |
| 0.00 | 2.12 | 0.00 | 1.08 | -14.75 | 208.37 | -3.65 | 162.67 | 0.2077 | -667.0 | -536.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -14.06 | 208.32 | -3.70 | 161.36 | 0.1968 | -1081.0 | -867.2 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -13.88 | 208.08 | -3.94 | 159.91 | 0.1952 | 796.0 | 641.2 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -12.89 | 208.06 | -3.96 | 157.89 | 0.1795 | 1039.0 | 808.4 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.87 | 207.57 | -4.45 | 159.40 | 0.2141 | -899.0 | -686.4 | |
| 8.07 | 31.18 | 4.09 | 15.79 | -14.50 | 207.24 | -4.78 | 157.36 | 0.2104 | -1037.8 | -750.8 | |
| 8.33 | -19.00 | 4.22 | -19.00 | -14.38 | 206.88 | -5.14 | 155.59 | 0.2110 | -1190.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -14.86 | 206.80 | -5.21 | 156.24 | 0.2189 | -853.0 | -709.5 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.23 | 206.64 | -5.38 | 154.27 | 0.2104 | -1012.0 | -846.3 | |
| 0.00 | 2.46 | 0.00 | 1.25 | -13.93 | 206.52 | -5.50 | 153.14 | 0.2067 | -929.0 | -787.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -14.08 | 206.24 | -5.77 | 152.33 | 0.2111 | -1039.0 | -790.2 | |
| 1.87 | 5.69 | 0.94 | 2.88 | -13.18 | 205.96 | -6.06 | 148.95 | 0.2001 | -1020.5 | -854.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.07 | 205.76 | -6.26 | 152.59 | 0.2298 | -820.0 | -679.0 | |
| 8.58 | 22.86 | 4.35 | 11.59 | -14.05 | 205.72 | -6.29 | 150.19 | 0.2149 | -1235.4 | -878.7 | |
| 2.04 | -27.00 | 1.03 | -27.00 | -13.77 | 205.58 | -6.44 | 148.96 | 0.2122 | -1109.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -14.49 | 205.44 | -6.58 | 150.14 | 0.2239 | -610.0 | -541.5 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -14.31 | 205.35 | -6.67 | 149.40 | 0.2220 | -763.0 | -656.4 | |
| 2.38 | 3.82 | 1.20 | 1.94 | -13.32 | 205.35 | -6.67 | 146.88 | 0.2078 | -1141.3 | -962.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.13 | 205.05 | -6.97 | 147.84 | 0.2220 | -1089.0 | -823.7 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -14.64 | 204.91 | -7.11 | 148.57 | 0.2306 | -934.0 | -728.7 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -13.26 | 204.95 | -7.06 | 145.20 | 0.2107 | -313.0 | -333.3 | |
| 4.25 | 22.26 | 2.15 | 11.29 | -13.44 | 204.73 | -7.28 | 144.88 | 0.2153 | -1207.7 | -705.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -14.10 | 204.71 | -7.30 | 146.54 | 0.2247 | -1112.0 | -1019.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.61 | 204.57 | -7.44 | 147.31 | 0.2332 | -981.0 | -829.9 | |
| 4.67 | -35.00 | 2.37 | -35.00 | -13.53 | 204.46 | -7.56 | 144.12 | 0.2193 | -928.0 | 999999 | |
| 3.31 | 7.82 | 1.69 | 3.98 | -14.13 | 204.44 | -7.58 | 145.64 | 0.2277 | -1058.2 | -851.8 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -14.43 | 204.21 | -7.81 | 145.62 | 0.2340 | -848.0 | -653.1 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -14.48 | 203.84 | -8.18 | 144.53 | 0.2384 | -804.0 | -593.7 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -12.15 | 203.92 | -8.10 | 138.05 | 0.2069 | -816.0 | -755.0 | |
| 0.00 | 2.04 | 0.00 | 1.03 | -12.03 | 203.68 | -8.34 | 136.82 | 0.2082 | -789.0 | -707.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
