SDO HMI 2011-01-04 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.21 | 274.36 | 41.01 | 138.61 | -14.14 | 208.29 | -2.09 | 169.60 | 0.1957 | -100.5 | -14.4 | |
|
previous
or next observation for the same group /

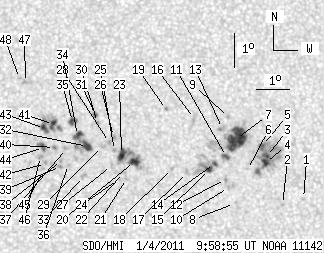

back to the solar disc SDO HMI 2011-01-04 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | -15.66 | 212.35 | 1.97 | 188.84 | 0.2163 | 826.0 | 678.9 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.85 | 211.71 | 1.33 | 185.89 | 0.2180 | 783.0 | 635.2 | |
| 0.85 | 54.63 | 0.43 | 27.57 | -14.40 | 211.21 | 0.83 | 184.20 | 0.1926 | 1319.7 | 632.6 | |
| 3.40 | -3.00 | 1.72 | -3.00 | -14.58 | 211.18 | 0.80 | 183.98 | 0.1957 | 1115.8 | 999999 | |
| 0.76 | -3.00 | 0.39 | -3.00 | -14.07 | 211.09 | 0.71 | 183.70 | 0.1868 | 1161.9 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -14.79 | 210.64 | 0.25 | 181.24 | 0.1988 | 665.0 | 460.5 | |
| 29.14 | 49.28 | 14.68 | 24.82 | -13.86 | 210.30 | -0.08 | 179.57 | 0.1828 | 1157.6 | 556.2 | |
| 0.00 | 0.42 | 0.00 | 0.22 | -15.82 | 210.24 | -0.14 | 179.36 | 0.2164 | 593.0 | 579.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.23 | 210.06 | -0.32 | 178.16 | 0.1720 | 919.0 | 630.1 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.33 | 210.06 | -0.33 | 178.48 | 0.2082 | 709.0 | 594.4 | |
| 2.97 | 4.50 | 1.50 | 2.27 | -14.40 | 210.00 | -0.39 | 178.05 | 0.1922 | 928.0 | 749.7 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -15.09 | 209.96 | -0.42 | 178.01 | 0.2041 | 899.0 | 770.8 | |
| 0.00 | 3.23 | 0.00 | 1.62 | -13.56 | 209.88 | -0.51 | 177.22 | 0.1778 | 890.0 | 725.9 | |
| 1.44 | 23.03 | 0.73 | 11.63 | -14.61 | 209.63 | -0.75 | 176.27 | 0.1961 | 1072.2 | 320.7 | |
| 3.06 | -14.00 | 1.55 | -14.00 | -14.79 | 209.48 | -0.90 | 175.59 | 0.1994 | 1044.8 | 999999 | |
| 0.00 | 5.01 | 0.00 | 2.52 | -13.26 | 209.03 | -1.35 | 172.38 | 0.1740 | 965.0 | 427.2 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -14.88 | 208.81 | -1.58 | 172.41 | 0.2021 | -829.0 | -689.9 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -14.76 | 208.35 | -2.03 | 170.14 | 0.2012 | -852.0 | -641.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -12.99 | 208.18 | -2.20 | 167.39 | 0.1719 | 1035.0 | 832.7 | |
| 6.12 | 28.97 | 3.09 | 14.65 | -14.55 | 207.19 | -3.19 | 164.47 | 0.2020 | -1101.2 | -750.3 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.06 | 206.94 | -3.44 | 164.03 | 0.2116 | -702.0 | -557.9 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.88 | 206.85 | -3.53 | 163.39 | 0.2091 | -982.0 | -617.8 | |
| 6.54 | -20.00 | 3.31 | -20.00 | -14.34 | 206.80 | -3.58 | 162.35 | 0.2005 | -1172.1 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -15.09 | 206.70 | -3.69 | 163.00 | 0.2133 | -462.0 | -523.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.22 | 206.59 | -3.79 | 161.18 | 0.1997 | -1222.0 | -927.5 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -13.80 | 206.57 | -3.82 | 160.34 | 0.1930 | -925.0 | -733.7 | |
| 0.00 | 2.12 | 0.00 | 1.08 | -14.67 | 206.49 | -3.89 | 161.46 | 0.2075 | -736.0 | -611.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.97 | 206.44 | -3.94 | 160.08 | 0.1966 | -1020.0 | -922.1 | |
| 0.00 | 2.80 | 0.00 | 1.42 | -14.09 | 206.23 | -4.16 | 159.30 | 0.1998 | -927.0 | -713.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -13.37 | 206.09 | -4.29 | 157.24 | 0.1892 | -957.0 | -808.5 | |
| 0.93 | 1.70 | 0.47 | 0.86 | -13.13 | 206.03 | -4.35 | 156.46 | 0.1858 | -1038.5 | -833.0 | |
| 6.12 | 22.01 | 3.09 | 11.13 | -14.09 | 205.77 | -4.61 | 157.25 | 0.2027 | -1170.8 | -894.8 | |
| 0.00 | 2.97 | 0.00 | 1.51 | -14.99 | 205.63 | -4.75 | 158.33 | 0.2178 | -633.0 | -612.0 | |
| 4.50 | -32.00 | 2.28 | -32.00 | -13.76 | 205.47 | -4.91 | 155.25 | 0.1996 | -1059.1 | 999999 | |
| 4.42 | 5.01 | 2.23 | 2.53 | -13.34 | 205.33 | -5.05 | 153.67 | 0.1941 | -1001.0 | -993.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -14.63 | 205.18 | -5.20 | 155.80 | 0.2151 | -789.0 | -640.6 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.15 | 205.13 | -5.25 | 154.61 | 0.2080 | -917.0 | -767.0 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -14.51 | 204.97 | -5.42 | 154.69 | 0.2148 | -960.0 | -843.0 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -14.69 | 204.93 | -5.45 | 154.92 | 0.2178 | -943.0 | -771.9 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -14.12 | 204.76 | -5.62 | 153.02 | 0.2103 | -1181.0 | -958.3 | |
| 3.57 | 26.00 | 1.80 | 13.14 | -13.43 | 204.75 | -5.63 | 151.34 | 0.2000 | -1192.6 | -607.2 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -14.60 | 204.47 | -5.91 | 152.92 | 0.2198 | -861.0 | -782.6 | |
| 4.33 | -41.00 | 2.19 | -41.00 | -13.55 | 204.47 | -5.91 | 150.48 | 0.2041 | -966.0 | 999999 | |
| 3.06 | 5.01 | 1.55 | 2.54 | -14.11 | 204.43 | -5.96 | 151.66 | 0.2130 | -1060.0 | -849.4 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -14.81 | 204.41 | -5.97 | 153.10 | 0.2235 | -374.0 | -441.2 | |
| 0.00 | 2.21 | 0.00 | 1.12 | -14.38 | 204.33 | -6.05 | 151.88 | 0.2178 | -882.0 | -713.7 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -12.17 | 203.93 | -6.45 | 144.34 | 0.1894 | -1075.0 | -809.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.05 | 203.75 | -6.63 | 143.21 | 0.1895 | -922.0 | -683.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
