SDO HMI 2011-01-04 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.19 | 30.81 | 12.55 | 37.11 | 34.30 | 264.33 | 57.24 | 310.37 | 0.9122 | 52.0 | 78.4 | |
|
previous
or next observation for the same group /

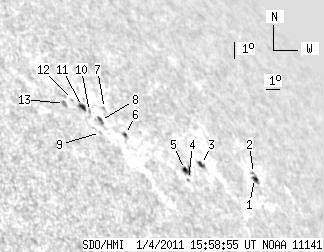

back to the solar disc SDO HMI 2011-01-04 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.87 | 3.48 | 2.68 | 5.01 | 33.40 | 270.16 | 63.07 | 307.54 | 0.9402 | -358.8 | -189.3 | |
| 0.00 | 1.10 | 0.00 | 1.60 | 33.60 | 270.33 | 63.24 | 307.69 | 0.9413 | -62.0 | -89.2 | |
| 2.80 | 3.65 | 3.57 | 4.65 | 33.71 | 266.60 | 59.51 | 308.93 | 0.9231 | -357.6 | -339.4 | |
| 0.00 | 1.36 | 0.00 | 1.63 | 33.09 | 265.02 | 57.93 | 308.82 | 0.9130 | 191.0 | 93.1 | |
| 1.53 | 5.69 | 1.85 | 6.94 | 33.45 | 265.14 | 58.05 | 309.15 | 0.9147 | -314.9 | -208.6 | |
| 1.02 | 2.12 | 1.16 | 2.42 | 34.59 | 262.47 | 55.38 | 311.26 | 0.9031 | -370.0 | -282.0 | |
| 0.00 | 1.44 | 0.00 | 1.66 | 35.54 | 262.09 | 55.01 | 312.36 | 0.9040 | 231.0 | 191.2 | |
| 0.00 | 3.14 | 0.00 | 3.51 | 35.05 | 261.36 | 54.27 | 312.15 | 0.8983 | 515.0 | 352.1 | |
| 0.00 | 1.19 | 0.00 | 1.30 | 34.58 | 260.91 | 53.82 | 311.86 | 0.8941 | 433.0 | 384.7 | |
| 0.00 | 1.02 | 0.00 | 1.13 | 35.37 | 260.99 | 53.90 | 312.62 | 0.8972 | 378.0 | 335.2 | |
| 2.97 | 3.82 | 3.29 | 4.23 | 35.54 | 260.72 | 53.63 | 312.90 | 0.8963 | 527.5 | 518.5 | |
| 0.00 | 0.25 | 0.00 | 0.28 | 35.78 | 260.35 | 53.26 | 313.29 | 0.8950 | 333.0 | 325.0 | |
| 0.00 | 2.55 | 0.00 | 2.75 | 35.60 | 259.69 | 52.60 | 313.38 | 0.8906 | 565.0 | 409.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
