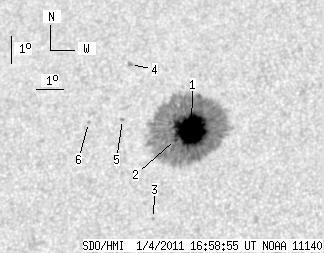

SDO HMI 2011-01-04 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.47 | 402.75 | 38.96 | 255.52 | 31.26 | 188.70 | -17.83 | 24.82 | 0.6260 | -1152.7 | -338.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-04 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.20 | 397.66 | 38.15 | 252.23 | 31.26 | 188.74 | -17.79 | 24.77 | 0.6258 | -1279.9 | -344.0 | |
| 1.27 | -1.00 | 0.81 | -1.00 | 30.91 | 188.23 | -18.30 | 25.66 | 0.6247 | -932.7 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.68 | 28.14 | 187.97 | -18.57 | 28.35 | 0.5935 | -754.0 | -648.8 | |
| 0.00 | 1.53 | 0.00 | 1.02 | 33.68 | 185.94 | -20.59 | 26.01 | 0.6697 | 841.0 | 686.2 | |
| 0.00 | 1.44 | 0.00 | 0.93 | 31.67 | 186.13 | -20.41 | 27.45 | 0.6462 | -648.0 | -506.2 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 31.59 | 184.89 | -21.65 | 28.88 | 0.6531 | 622.0 | 529.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
