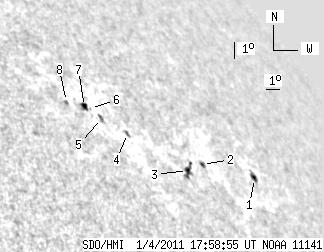

SDO HMI 2011-01-04 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.26 | 27.76 | 11.89 | 34.93 | 34.14 | 264.75 | 58.76 | 309.69 | 0.9199 | -6.5 | 22.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-04 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.21 | 5.09 | 3.31 | 7.65 | 33.39 | 270.15 | 64.16 | 307.23 | 0.9452 | -273.1 | -187.8 | |
| 1.61 | 2.46 | 2.13 | 3.25 | 33.69 | 266.53 | 60.55 | 308.58 | 0.9285 | -353.7 | -401.9 | |
| 2.38 | 8.32 | 2.98 | 10.45 | 33.40 | 265.13 | 59.15 | 308.73 | 0.9205 | -377.4 | 18.6 | |
| 0.00 | 2.29 | 0.00 | 2.70 | 34.60 | 262.40 | 56.41 | 310.90 | 0.9089 | -467.0 | -375.5 | |
| 0.00 | 2.97 | 0.00 | 3.41 | 35.10 | 261.23 | 55.25 | 311.82 | 0.9040 | 406.0 | 288.5 | |
| 0.00 | 1.02 | 0.00 | 1.16 | 35.45 | 260.90 | 54.91 | 312.31 | 0.9032 | 370.0 | 398.8 | |
| 3.06 | 3.74 | 3.47 | 4.24 | 35.51 | 260.58 | 54.59 | 312.49 | 0.9016 | 535.2 | 572.6 | |
| 0.00 | 1.87 | 0.00 | 2.07 | 35.64 | 259.59 | 53.61 | 313.01 | 0.8965 | 513.0 | 376.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
