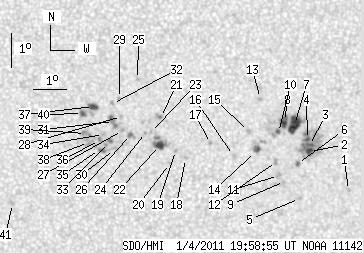

SDO HMI 2011-01-04 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.19 | 183.47 | 23.36 | 92.85 | -14.31 | 208.65 | 3.78 | 197.69 | 0.2054 | -56.4 | -56.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-01-04 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | -15.85 | 212.56 | 7.69 | 210.79 | 0.2525 | 611.0 | 551.7 | |
| 3.06 | 51.63 | 1.55 | 26.22 | -14.68 | 211.32 | 6.45 | 209.01 | 0.2250 | 1035.0 | 533.2 | |
| 2.80 | -2.00 | 1.42 | -2.00 | -14.50 | 211.32 | 6.44 | 209.40 | 0.2222 | 1150.3 | 999999 | |
| 1.70 | -2.00 | 0.86 | -2.00 | -14.32 | 211.25 | 6.37 | 209.56 | 0.2190 | 1130.8 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -16.10 | 211.06 | 6.18 | 205.19 | 0.2442 | 857.0 | 730.5 | |
| 0.59 | 1.78 | 0.30 | 0.91 | -15.04 | 210.97 | 6.09 | 206.89 | 0.2275 | 967.4 | 843.3 | |
| 13.93 | 27.09 | 7.05 | 13.71 | -13.87 | 210.84 | 5.96 | 209.01 | 0.2090 | 1140.5 | 757.3 | |
| 6.79 | -7.00 | 3.44 | -7.00 | -13.78 | 210.54 | 5.66 | 207.96 | 0.2052 | 1199.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -15.59 | 210.58 | 5.70 | 204.38 | 0.2330 | 792.0 | 641.8 | |
| 1.87 | 4.67 | 0.95 | 2.36 | -14.12 | 210.36 | 5.48 | 206.47 | 0.2088 | 910.6 | 748.1 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -15.41 | 210.39 | 5.52 | 203.99 | 0.2289 | 872.0 | 815.3 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -14.99 | 210.32 | 5.44 | 204.51 | 0.2219 | 897.0 | 737.7 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -13.10 | 209.79 | 4.91 | 206.32 | 0.1889 | 1024.0 | 843.5 | |
| 0.51 | 8.58 | 0.26 | 4.34 | -14.69 | 209.67 | 4.79 | 202.43 | 0.2128 | 801.5 | 794.3 | |
| 0.00 | 2.38 | 0.00 | 1.20 | -14.09 | 209.45 | 4.57 | 202.60 | 0.2019 | -120.0 | -64.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.81 | 209.00 | 4.12 | 199.36 | 0.2107 | -775.0 | -581.4 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -14.45 | 208.29 | 3.42 | 196.75 | 0.2011 | -935.0 | -789.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -14.91 | 207.54 | 2.66 | 192.67 | 0.2053 | -754.0 | -652.1 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -14.67 | 207.23 | 2.35 | 191.49 | 0.2002 | -806.0 | -676.8 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -15.06 | 207.05 | 2.17 | 190.28 | 0.2062 | -895.0 | -719.0 | |
| 1.10 | 2.63 | 0.56 | 1.33 | -13.68 | 206.76 | 1.89 | 190.17 | 0.1820 | -955.7 | -782.6 | |
| 5.43 | 13.42 | 2.74 | 6.77 | -14.52 | 206.74 | 1.86 | 189.28 | 0.1962 | -1141.1 | -898.5 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -14.13 | 206.46 | 1.59 | 188.21 | 0.1889 | -927.0 | -633.7 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -14.13 | 206.31 | 1.43 | 187.44 | 0.1885 | -1005.0 | -790.3 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.54 | 206.06 | 1.18 | 187.24 | 0.1608 | -871.0 | -597.9 | |
| 1.78 | 3.48 | 0.90 | 1.76 | -14.19 | 205.86 | 0.98 | 185.06 | 0.1887 | -1064.4 | -931.8 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -14.07 | 205.61 | 0.74 | 183.85 | 0.1863 | -1161.0 | -967.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -13.65 | 205.58 | 0.70 | 183.84 | 0.1791 | -1031.0 | -780.5 | |
| 0.00 | 1.10 | 0.00 | 0.55 | -13.11 | 205.52 | 0.64 | 183.70 | 0.1697 | -976.0 | -777.2 | |
| 0.00 | 3.74 | 0.00 | 1.89 | -14.64 | 205.37 | 0.49 | 182.45 | 0.1959 | -601.0 | -600.4 | |
| 0.00 | 6.96 | 0.00 | 3.51 | -13.80 | 205.34 | 0.46 | 182.48 | 0.1814 | -1116.0 | -1041.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -13.26 | 205.31 | 0.43 | 182.45 | 0.1721 | -1123.0 | -828.0 | |
| 0.00 | 3.14 | 0.00 | 1.59 | -14.43 | 205.19 | 0.31 | 181.58 | 0.1922 | -858.0 | -992.7 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -14.19 | 205.04 | 0.16 | 180.82 | 0.1880 | -865.0 | -749.3 | |
| 0.00 | 4.08 | 0.00 | 2.06 | -14.64 | 204.92 | 0.04 | 180.19 | 0.1957 | -841.0 | -756.3 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -14.37 | 204.92 | 0.04 | 180.19 | 0.1910 | -1120.0 | -954.7 | |
| 4.25 | 7.05 | 2.13 | 3.54 | -13.35 | 204.73 | -0.14 | 179.19 | 0.1735 | -1123.1 | -806.8 | |
| 0.00 | 5.26 | 0.00 | 2.66 | -14.43 | 204.58 | -0.30 | 178.49 | 0.1921 | -835.0 | -812.1 | |
| 0.00 | 4.50 | 0.00 | 2.27 | -14.16 | 204.49 | -0.39 | 177.98 | 0.1875 | -1073.0 | -1004.4 | |
| 2.38 | 3.06 | 1.20 | 1.54 | -13.56 | 204.40 | -0.48 | 177.37 | 0.1773 | -957.8 | -997.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -16.26 | 202.25 | -2.63 | 168.79 | 0.2279 | -720.0 | -610.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
