SDO HMI 2011-01-04 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.50 | 19.45 | 5.64 | 26.59 | 34.32 | 264.40 | 61.18 | 309.11 | 0.9325 | 160.3 | -41.3 | |
|
previous
or next observation for the same group /

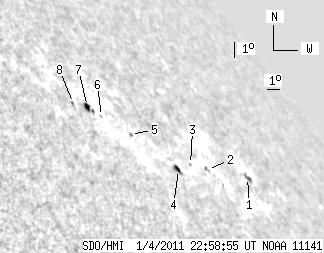

back to the solar disc SDO HMI 2011-01-04 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.48 | 0.00 | 5.83 | 33.53 | 269.90 | 66.68 | 306.72 | 0.9564 | -348.0 | -218.3 | |
| 0.00 | 2.72 | 0.00 | 3.98 | 33.63 | 266.66 | 63.43 | 307.68 | 0.9424 | -481.0 | -359.8 | |
| 0.00 | 0.85 | 0.00 | 1.19 | 33.74 | 265.47 | 62.25 | 308.13 | 0.9371 | 189.0 | 150.7 | |
| 1.27 | 3.57 | 1.71 | 4.77 | 33.49 | 264.26 | 61.04 | 308.24 | 0.9306 | 205.7 | 55.9 | |
| 0.00 | 1.27 | 0.00 | 1.62 | 34.66 | 262.19 | 58.97 | 310.07 | 0.9228 | -433.0 | -319.0 | |
| 0.00 | 0.85 | 0.00 | 1.05 | 35.25 | 260.87 | 57.65 | 311.12 | 0.9175 | 182.0 | 218.6 | |
| 3.23 | 5.69 | 3.93 | 6.94 | 35.59 | 260.30 | 57.08 | 311.66 | 0.9155 | 493.7 | 444.6 | |
| 0.00 | 1.02 | 0.00 | 1.21 | 35.66 | 259.45 | 56.22 | 312.04 | 0.9111 | 465.0 | 360.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
