SDO HMI 2011-01-04 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.05 | 168.61 | 22.34 | 85.49 | -14.28 | 208.35 | 5.12 | 203.48 | 0.2124 | 37.0 | -111.9 | |
|
previous
or next observation for the same group /

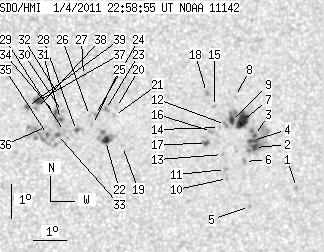

back to the solar disc SDO HMI 2011-01-04 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.87 | -15.94 | 212.67 | 9.45 | 215.99 | 0.2699 | 879.0 | 637.7 | |
| 3.57 | 39.32 | 1.82 | 20.05 | -14.75 | 211.33 | 8.10 | 214.70 | 0.2405 | 1010.1 | 515.7 | |
| 1.27 | -2.00 | 0.65 | -2.00 | -14.39 | 211.31 | 8.09 | 215.56 | 0.2355 | 995.3 | 999999 | |
| 3.65 | -2.00 | 1.86 | -2.00 | -14.54 | 211.26 | 8.03 | 215.00 | 0.2370 | 1132.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.53 | 211.24 | 8.02 | 210.49 | 0.2648 | 809.0 | 626.9 | |
| 0.00 | 2.38 | 0.00 | 1.21 | -15.17 | 211.03 | 7.81 | 212.74 | 0.2437 | 977.0 | 762.0 | |
| 13.16 | 24.88 | 6.69 | 12.64 | -13.94 | 210.93 | 7.71 | 215.43 | 0.2256 | 1103.9 | 906.0 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -13.22 | 210.69 | 7.47 | 216.56 | 0.2134 | 782.0 | 670.4 | |
| 2.97 | -7.00 | 1.51 | -7.00 | -13.94 | 210.59 | 7.37 | 214.23 | 0.2223 | 1182.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -15.69 | 210.53 | 7.31 | 209.92 | 0.2466 | 799.0 | 660.8 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -15.42 | 210.46 | 7.23 | 210.25 | 0.2421 | 973.0 | 771.9 | |
| 0.00 | 2.38 | 0.00 | 1.21 | -14.06 | 210.41 | 7.19 | 213.27 | 0.2223 | 1030.0 | 842.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -14.97 | 210.35 | 7.13 | 210.88 | 0.2346 | 817.0 | 652.5 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -14.16 | 210.23 | 7.01 | 212.38 | 0.2219 | 874.0 | 651.8 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -13.53 | 210.06 | 6.84 | 213.37 | 0.2114 | 946.0 | 719.0 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.28 | 209.99 | 6.77 | 211.20 | 0.2215 | 947.0 | 796.9 | |
| 2.12 | 2.97 | 1.08 | 1.51 | -14.64 | 209.85 | 6.63 | 209.82 | 0.2255 | 899.9 | 511.1 | |
| 0.00 | 2.12 | 0.00 | 1.07 | -13.11 | 209.80 | 6.58 | 213.52 | 0.2031 | 991.0 | 882.1 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.74 | 207.28 | 4.06 | 199.22 | 0.2089 | -881.0 | -588.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.57 | 207.08 | 3.86 | 200.34 | 0.1889 | -718.0 | -544.0 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.81 | 207.02 | 3.80 | 199.63 | 0.1924 | -756.0 | -640.3 | |
| 4.08 | 13.67 | 2.06 | 6.91 | -14.56 | 206.76 | 3.54 | 197.17 | 0.2032 | -1072.9 | -816.8 | |
| 0.00 | 3.82 | 0.00 | 1.93 | -13.64 | 206.74 | 3.52 | 198.61 | 0.1879 | -1094.0 | -826.2 | |
| 0.00 | 2.46 | 0.00 | 1.24 | -13.79 | 206.44 | 3.22 | 196.88 | 0.1888 | -952.0 | -725.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -14.09 | 206.36 | 3.13 | 195.99 | 0.1933 | -889.0 | -673.9 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -13.82 | 206.26 | 3.04 | 195.93 | 0.1885 | -888.0 | -554.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -12.62 | 206.06 | 2.84 | 196.85 | 0.1678 | -955.0 | -712.5 | |
| 1.10 | 3.23 | 0.56 | 1.63 | -14.27 | 205.87 | 2.65 | 193.40 | 0.1943 | -1058.8 | -814.0 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -14.30 | 205.51 | 2.28 | 191.57 | 0.1934 | -932.0 | -771.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.70 | 205.44 | 2.22 | 191.91 | 0.1831 | -927.0 | -705.9 | |
| 0.93 | 8.66 | 0.47 | 4.37 | -13.94 | 205.38 | 2.16 | 191.33 | 0.1869 | -1064.6 | -932.5 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -13.19 | 205.31 | 2.09 | 191.84 | 0.1741 | -950.0 | -603.1 | |
| 1.27 | 29.55 | 0.64 | 14.92 | -14.39 | 205.29 | 2.07 | 190.44 | 0.1942 | -1036.2 | -802.7 | |
| 2.29 | -31.00 | 1.16 | -31.00 | -13.76 | 205.23 | 2.01 | 190.73 | 0.1834 | -1116.6 | 999999 | |
| 0.93 | -33.00 | 0.47 | -33.00 | -14.39 | 204.99 | 1.77 | 188.93 | 0.1934 | -1177.8 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -14.15 | 204.96 | 1.74 | 188.97 | 0.1892 | -973.0 | -785.2 | |
| 5.01 | 5.86 | 2.52 | 2.95 | -13.37 | 204.71 | 1.49 | 188.32 | 0.1753 | -1121.1 | -886.4 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.61 | 204.65 | 1.43 | 187.80 | 0.1793 | -1106.0 | -863.8 | |
| 1.70 | 2.46 | 0.85 | 1.24 | -13.55 | 204.38 | 1.16 | 186.36 | 0.1777 | -976.3 | -917.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
