SDO HMI 2011-01-05 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.23 | 21.06 | 4.21 | 30.53 | 34.26 | 264.42 | 62.84 | 308.56 | 0.9404 | 148.5 | 58.5 | |
|
previous
or next observation for the same group /

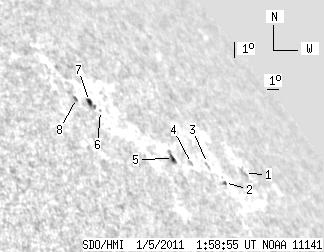

back to the solar disc SDO HMI 2011-01-05 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.48 | 0.00 | 6.25 | 33.54 | 269.81 | 68.23 | 306.38 | 0.9626 | -382.0 | -182.8 | |
| 0.00 | 1.87 | 0.00 | 2.97 | 33.07 | 267.24 | 65.67 | 306.52 | 0.9515 | -460.0 | -343.5 | |
| 0.00 | 0.68 | 0.00 | 1.07 | 33.73 | 266.74 | 65.16 | 307.31 | 0.9504 | -143.0 | -174.2 | |
| 0.00 | 2.29 | 0.00 | 3.39 | 33.64 | 265.30 | 63.72 | 307.62 | 0.9439 | 347.0 | 223.0 | |
| 0.68 | 4.59 | 0.96 | 6.48 | 33.75 | 264.02 | 62.44 | 308.09 | 0.9381 | 140.9 | 36.8 | |
| 0.00 | 0.93 | 0.00 | 1.20 | 35.32 | 260.57 | 58.99 | 310.74 | 0.9247 | 265.0 | 262.2 | |
| 2.55 | 5.95 | 3.25 | 7.58 | 35.63 | 260.17 | 58.59 | 311.19 | 0.9235 | 417.1 | 497.2 | |
| 0.00 | 1.27 | 0.00 | 1.59 | 35.70 | 259.34 | 57.77 | 311.54 | 0.9194 | 398.0 | 290.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
